Product Details:
Payment & Shipping Terms:
|
| Product Name: | Quick Response Electric Welding Machine 500 For Manufacturing Plant | Voltage: | AC220V+/-20% |
|---|---|---|---|
| Power: | 5.5kw | Current: | 80A |
| Frequency: | 50-60Hz Single Phase | Relative Humldit: | 60% |
| Protectlon Class: | IP54 | Packing Size: | 53*36*30cm |
| Weight: | 32KG | Customized: | Approved |
| Highlight: | IP54 Protection Electric Welding Machine,Single phase Electrofusion Welding Machine,Manufacturing Plant Electrofusion Welding Machine |
||
Quick Response electric welding machine 500 for Manufacturing Plant
Application
Electrofusion welding machine using true RMS control, is mainly used in connection of gas or water polyethylene (PE) pipes and fittings. It is the perfect corollary equipment for every PE pipe, pipe fitting manufactures and construction units.
The machine has higher performance than the international standard ISO12176-2 in welding voltage
stability, welding time accuracy and the temperature detection accuracy, etc.
Technical Parameters
| Specifications& Models | 200 | 315 | 500 |
| Welding Range (mm) | 20-200 | 20-315 | 20-500 |
| Input Voltage | AC220V+/-20% 50-60Hz Single phase |
AC220V+/-20% 50-60Hz Single phase |
AC220V+/-20% 50-60Hz Single phase |
| Outpower Power | 2.5Kw | 3.5Kw | 5.5Kw |
| Output Voltage | 10-55V | 10-65V | 10-90V |
| Output Current | 50A | 60A | 80A |
| Work environment | '-15-45℃ Relative humidity 80% | '-15-45℃ Relative humidity 80% | ’-15-45℃ Relative humidity 80% |
| Protection grade | IP54 | IP54 | IP54 |
| Load factor | 60% | 60% | 60% |
| Package size(cm) | 40*27*30cm | 53*36*30cm | 53*36*30cm |
| Weight | 19KGS | 25KGS | 32KGS |
Electrofusion connection process
The operation points of electrofusion connection. Clean the dirt on the connecting surface of the pipe, mark the insertion depth, and scrape the skin; fix the pipe on the frame, and put the electrofusion pipe fittings on the pipe; straighten the parts to be connected to ensure that they are on the same axis; power on and weld; cool down. When connecting, the selection of voltage and heating time when energized and heated should comply with the regulations of the manufacturer of electrofusion connection equipment and pipe fittings. While the fused connection is cooling, do not move or apply any external force on the connection. The power supply of the machine also has the characteristics of moisture-proof and shock-proof, which is convenient for working in harsh conditions in the field.The power supply of this machine also has the characteristics of moisture-proof and shock-proof, which is convenient for working in harsh conditions in the field.

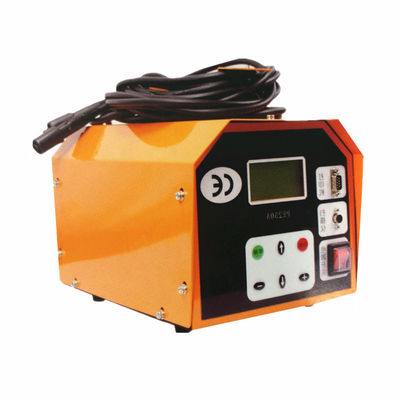

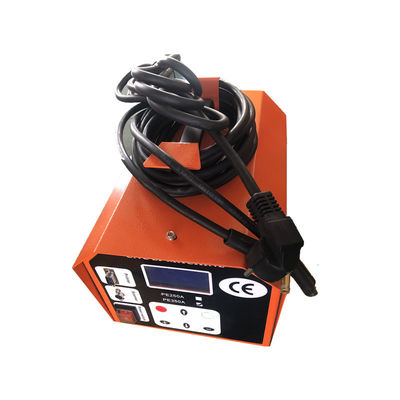

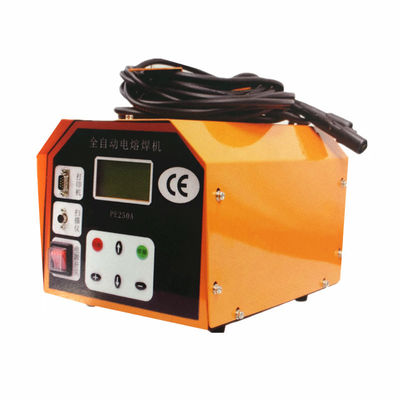

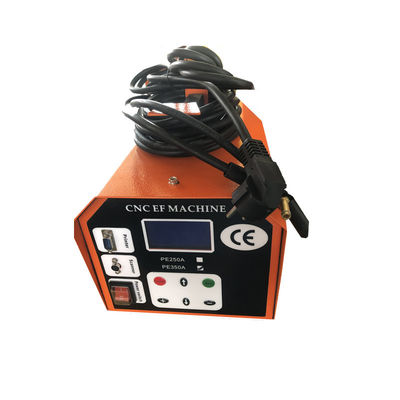

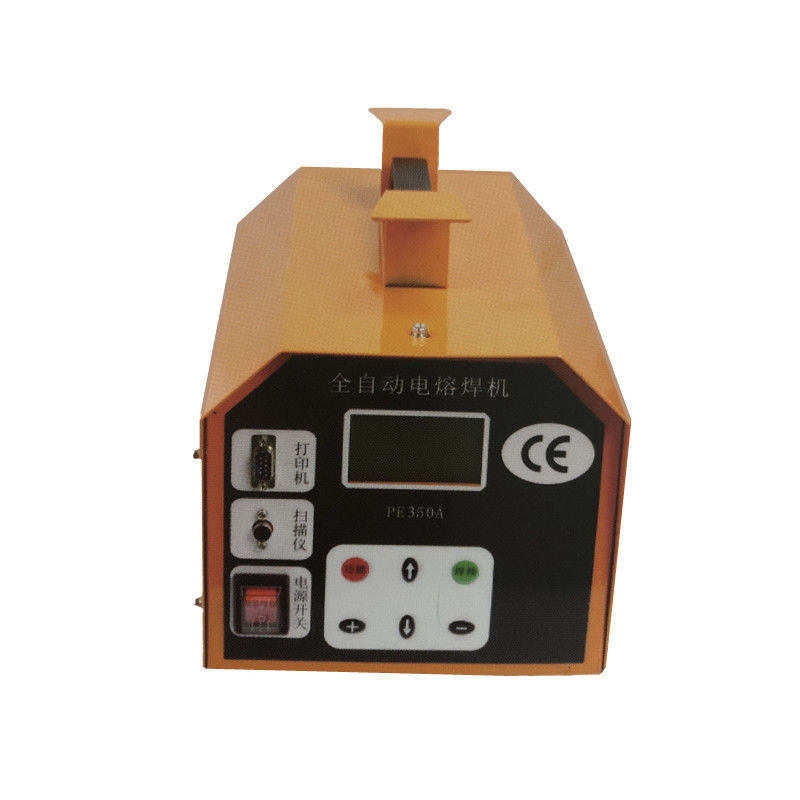

Product details
Our service:
1) We offer 1 year warranty and free spare parts. (Except for wearing parts)
2) We offer voltage and frequency of motor customization service
3) We can put your LOGO on machine plate or packing (need your authorization on brand)
4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
FAQ:
Q1 .What about your guarantee ?
A: the machine's guarantee is 12 months.
Q2. Would you accept the ODM or OEM ?
A: Accept the OEM /ODM ,but it must be No infringement of third party.
Q3. what's the MOQ?
A: Order could be discussed.
Q4. What about your delivery time? Can we receive our goods on time?
A: Delivery date is within 25-35 working days after receipt of the deposit . Yearly on-time delivery rate high than 98%.
Q5. what quality system has been gained for your factory ?
A: We have gained : ISO9001:2008, SGS CCC for our factory
