Product Details:
Payment & Shipping Terms:
|
| Product Name: | Iron Pipe Threading Machine | Scope Of Application: | M12 – M33 Bolt Round Bar |
|---|---|---|---|
| Power: | 750W | Die Head: | Quick Open |
| Function: | Multi Purpose | Key Words: | Stainless Steel Threading Machine |
| Color: | Red / Can Be Customized | Weight: | 70/60Kg |
| Application: | Pipe Cutting & Threading | Packing Size: | 70*48*54CM |
| Package: | 1SET/WOODEN CASE | ||
| Highlight: | 1/2″ Universal Pipe Threader,M12 Universal Pipe Threading Machine,Stainless Steel Portable Pipe Threader |
||

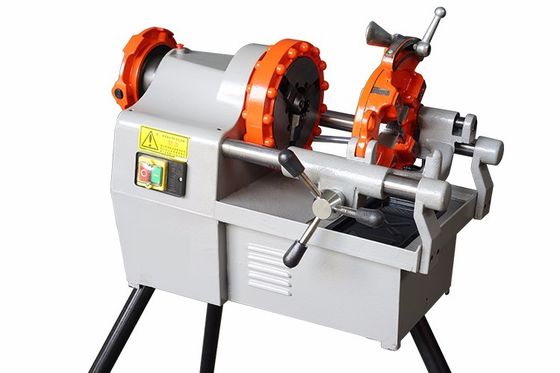

Universal Pipe Threading Machine Set Size M12-M33 with round metric die
For on-site round bar and round bolt threading.
The same machine we can put on different dies to become pipe threading machine.
Technical data
| Product Name | Universal Pipe Threading Machine Set Size M12-M33 |
| Rotational speed of main shaft | 46 r/min |
| Model of die head | Die head for Bolt |
| Scope of application | M12-M33 |
| Power of motor: | 750w |
| Gross net weight | 70kg/60kg |
| Packing dimension | 700mm*480mm*540mm |
| Item | electric ratchet pipe threader |
| Key word | rod threading machine |

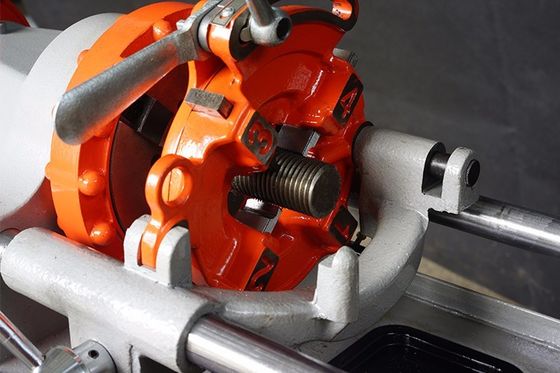

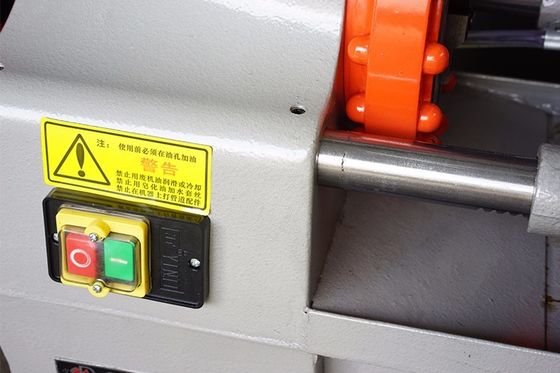

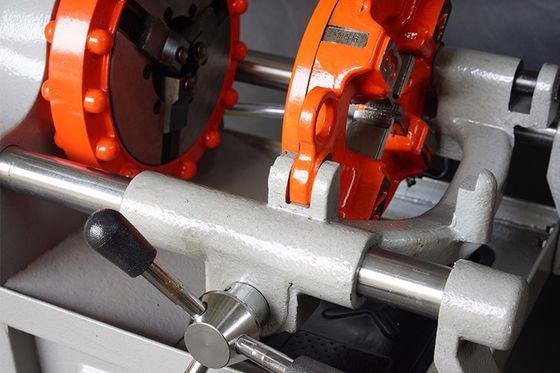

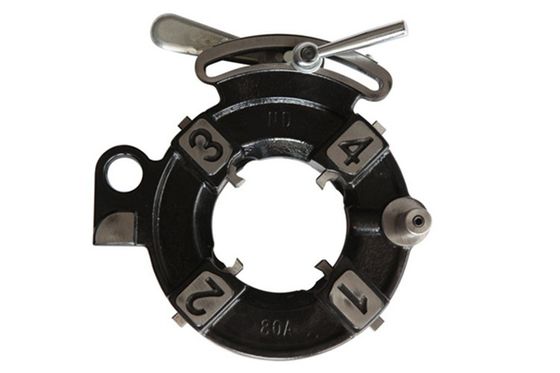

Detail photos
How to Threading
(1) Pull the cutting knife frame and chamferer; put down die head to touch the copying block. After reliable positioning of die head, press the button to start the machine.
(2) Rotate the pipe in anti-clockwise direction, rotate the hand wheel of cutting feed, and make die head get close to the pipe.
(3) Apply force to the hand wheel of cutting feed, until die head makes 3 ~4 threads on the pipe.
(4) Then, loosen the hand wheel of cutting feed, so the machine starts automatic threading. When roller of die head goes over copying block and falls down, threading die will open automatically and the threading is completed (M12-M33) threading machine is required to turn back to make the threading die exit). threading die shall be loosened manually.
(5) Machine halt. Return to the carriage, until the whole die head exits pipe end. Pull out die head, lock the handle and pull up the die head.
Important Notice
1. This machine shall be used with reliable grounding and anti-creep device.
2. Children are prohibited from touching this machine to avoid injury.
3. This machine shall not use the same socket with large-power machines, such as electric welding machine.
4. Pipe clamps shall not be installed on the machine, to avoid cracking of main components such as the cabinet.
5. Saponified solution shall not be used for cooling, such as water.
6. When above pipe thread is made, it is required to adopt the low-gear processing mode,
7. When leaving factory, centrality of the machine has been measured, but pipes on the market have certain ovality at present. After machining, screw threads may be deep on one side and shallow on the other side. If they affect use, please check the quality of pipes.
FAQ
1. How to get a accurate quotation from us?
Provide us the detail of the material such as metal thickness and width.
2. What’s the shipping cost from China to your country?
We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.
3. Payment terms, MOQ, warranty, FOB?
Payment terms: 30% TT paid in advance, the balance of 70% before the shipment.
Minimum order quantity: 1 set.
FOB :Shanghai/Ningbo
Delivery time :7 days after receipt of formal order and 30% deposit.
Warranty:12 months.
4. What’s the package?
Fumigation-free plywood case.
5. What about commissioning service?
We can offer commissioning service, the buyer need to afford plane tickets.
6. What’s policy for guarantee and broken parts?
Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
7.Any question, call us or send email, we will try our best to satisfy you.
