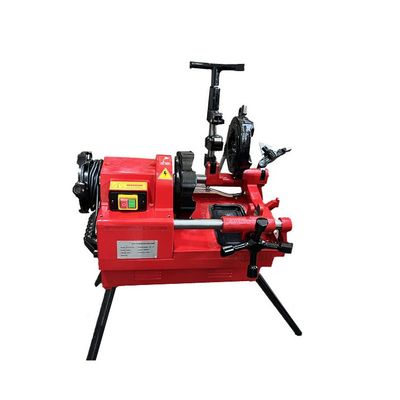

STT50AP High speed 1800w Universal Electric Pipe Threading Machine 1/2″-2″ for pipe

 STT50AP High speed 1800w Universal Electric Pipe Threading Machine 1/2″-2″ for pipe

Pipe threading machine is also called threading machine, electric threading machine, pipe threading machine and so on. It is mainly used for thread processing of steel pipe materials, and the connecting threads are processed on the raw materials by cutting. Before 1980, people usually used manual pipe thread twisting plates to perform thread processing manually. After 1980, with the progress of electrification, on the basis of manual pipe thread twisting plate, an electric pipe threader was manufactured, which greatly reduced the labor intensity and improved the processing efficiency.

The threading machine is composed of a body, a motor, a chuck, a die head, a chamfering device, a cutter frame, a knife feed device, and a cooling system. There are generally two types of threading machines in the market. One is a heavy-duty threading machine, all made of aluminum alloy, with large weight, stable performance, and high price. It is suitable for long-term projects and is not easy to move. The other is a light threading machine, the lower part is made of iron plate, the upper part is made of aluminum alloy, which is small in weight, strong in flexibility, low in price, and low in stability. It is suitable for projects with short construction period and frequent flow.

Specifications
Model: STT50AP
Machining size: 1/2"-2" (Φ13-Φ50) for pipe
Motor power: 1800W
Speed: 40rpm
G.W./N.W.: 65/51kgs
Packing size: 700*480*540mm

Standard Equipment
Quick-open die head
Dies set 1/2”-3/4”
Dies set 1”-2”
Support
Tools bag

Optional die head
Quick-open die head
Dies set: BSW ¼”, 3/8”, ½”, 5/8”, ¾”, 7/8”, 1”

Key words:pipe threading machine, electric pipe threading machine, Iron pipe threading machine, steel pipe threader, stainless steel threading machine, portable pipe threading machine, automatic pipe threading machine

Technical data

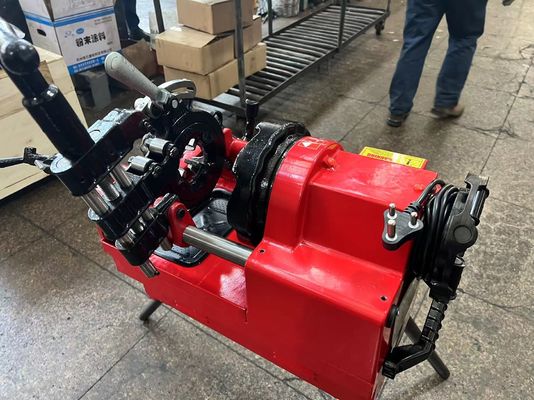

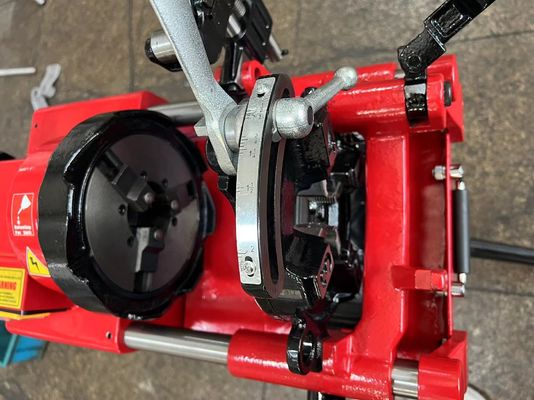

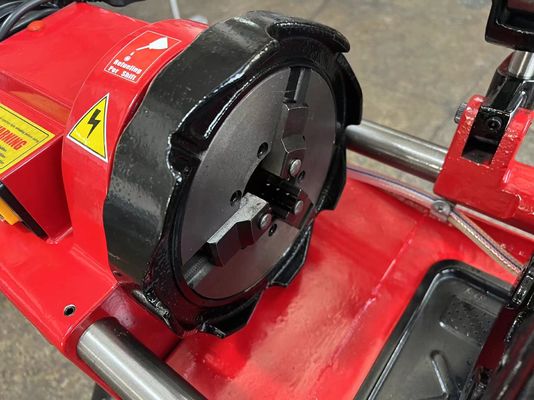

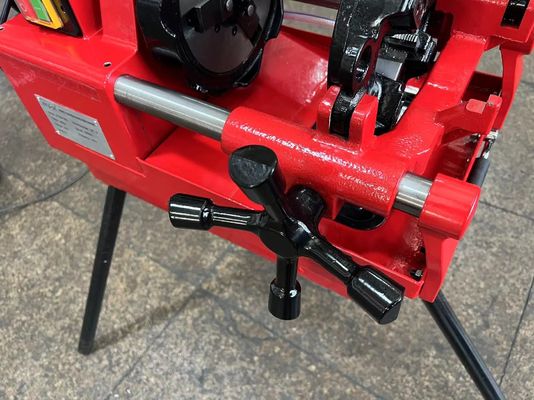

Detail photos

1. How to get a accurate quotation from us?
Provide us the detail of the material such as metal thickness and width.
2. What’s the shipping cost from China to your country?
We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.
3. Payment terms, MOQ, warranty, FOB?
Payment terms: 30% TT paid in advance, the balance of 70% before the shipment.
Minimum order quantity: 1 set.
FOB :Shanghai.
Delivery time :7 days after receipt of formal order and 30% deposit.
Warranty:12 months.
4. What’s the package?
Fumigation-free plywood case or without package.
5. What about commissioning service?
We can offer commissioning service, the buyer need to afford plane tickets.
6. What’s policy for guarantee and broken parts?
Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
7.Any question, call us or send email, we will try our best to satisfy you.

Important Notice

1. This machine shall be used with reliable grounding and anti-creep device.

2. Children are prohibited from touching this machine to avoid injury.

3. This machine shall not use the same socket with large-power machines, such as electric welding machine.

4. Pipe clamps shall not be installed on the machine, to avoid cracking of main components such as the cabinet.

5. Saponified solution shall not be used for cooling, such as water.

6. When above 2½″ pipe thread is made, it is required to adopt the low-gear processing mode,

7. When leaving factory, centrality of the machine has been measured, but pipes on the market have certain ovality at present. After machining, screw threads may be deep on one side and shallow on the other side. If they affect use, please check the quality of pipes.
