| Product Name: | China Factory Welding Plastic Pipe SHT160-SHY For Building Material Shops | Working Range: | 63-160mm |
|---|---|---|---|
| Pipe Size: | 63, 75, 90, 110, 125, 140, 160 | Planning Tool Power: | 1.2kw |
| Heating Plate Power: | 1.5 Kw | Hydraulic Unit Power: | 0.75kw |
| Total Power: | 3.45 Kw | Max. Temp: | 270℃ |
| Weight: | 181kg | Frame Packing: | 820*580*420mm |
| Control Box Packing: | 670*500*500mm | G.W./N.W.:: | 120Kgs |

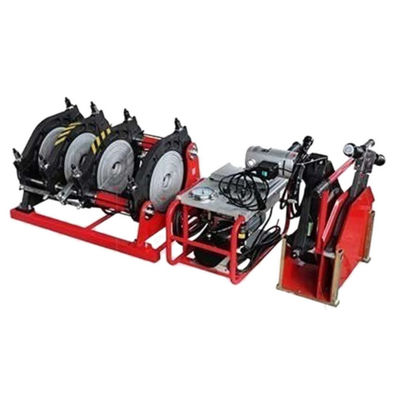

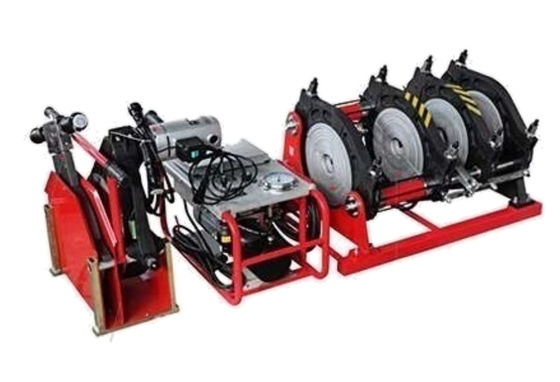

China factory welding plastic pipe SHT160-SHY for Building Material Shops
1. trail order is welcomed, you can test our quality first before making large quantity,even though we are wholesales supplier.
2. you can buy what you want with more reasonable price ;
3. you can enjoy big discounting after you become to be our regular client
Butt Fushion Welding Machine Technical data:
| Size | SHT160-SHY | |
| SHT160 -SHY |
Working Range | 63-160mm |
| Caliber (mm) | 63, 75, 90, 110, 125, 140, 160 | |
| Heating board max temp. | 270 °C | |
| Temperature bias | “+/-5° | |
| Pressure adjustment range | 0-10Mpa | |
| Heating plate power | 1.5 Kw | |
| Power of Planning tool: | 1.2 Kw | |
| Hydraulic unit power | 0.75 Kw | |
| Total power | 3.45 Kw | |
| G.W./N.W.: | 120 Kgs | |
| Packing size: | 820x580x420mm | |
| 670x500x500mm | ||
Packaging Details:standard export wooden case
Delivery Detail:Shipped in 15 days after payment
Additional Information:

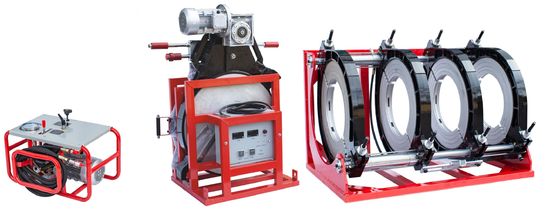

Packaging Details: Includes Basic Frame, Chamfering Toll, Heating Plate, Hydraulic Station and Steel Stand
Heating Plate Max Temp 270 degree C
Hydraulic Station Power 1500 W
Gross Weight 400 Kg
Model Number SHT160-SHY
Temperature Deviation +/-3 degree C
Operation Temperature 220 degree C
Pressure Adjustable Range 0-6.3 Mpa
Welding procedure for HDPE PIPE manual Butt Fusion Welding Machine
1. Check whether the specification and pressure grade of the pipe to be welded are correct, and check whether there are bumps, bumps and scratches on the surface. If the depth of the scar exceeds 10% of the wall thickness of the pipe, it should be partially removed before use;
2. Clean the oil or foreign matters at both ends of the pipe with a clean cloth;
3. Place the pipe to be welded in the frame slip, so that the length of both ends is equal (as short as possible without affecting the milling and heating). The part outside the frame of the pipe shall be supported by supports to reduce friction, and then be fastened with slips;
5. Close the two pipe ends and check the alignment of both ends. The misalignment at both ends of the pipe should not exceed 10% of the wall thickness, which can be improved by adjusting the straightness and the elastic slip of the pipe; the gap between the two ends of the pipe should not exceed 10% of the wall thickness, otherwise it should be milled again until the above requirements are met;
Our service:
1) We offer 1 year warranty and free spare parts. (Except for wearing parts)
2) We offer voltage and frequency of motor customization service, such as 110v 60hz.
3) We can put your LOGO on machine plate or packing (need your authorization on brand)
4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
