| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | WOODEN CASE |
| Delivery Period: | 30DAYS |
| Payment Method: | TT |
| Supply Capacity: | 20000PCS/MONTH |

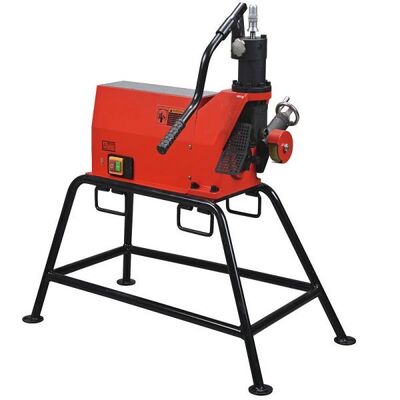

This hydraulic roll groover equips with updated hydraulic pump, with convenient depth adjusting function, powered by 750w induction motor, is capable of grooving 1''-6'' pipes. Separate knurling roller design of drive shaft for convenient replacement.
● This Machine is designed for grooving 1"-6"
● Simple design of the carriage, easy to be assembled and transported
● Equipped with integral hydraulic pump and stroke limitation device to control the depth of grooves precisely and effectively.

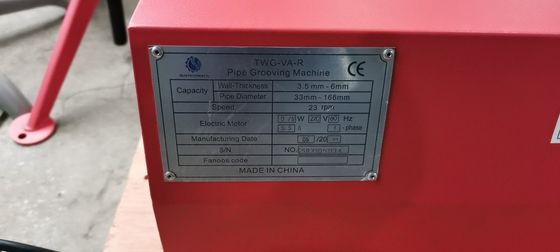

Specifications
Model: STG6A
Capacity: 1"-6"(33-168mm diameter)SCH40 steel pipe
1"-6"(33-168mm diameter)SCH10S SCH5S SCH10 SCH5 thin wall steel pipe
Max. wall thickness: 6mm
Motor power: 750W
Output RPM: 23rpm
G.W.:96kgs
Packaging size: 95x53x65cm
Standard Equipment
* For SCH40 steel pipe
Knurl wheel φ33-φ48
Knurl wheel φ57-φ89
Knurl wheel φ108-φ168
Pinch Roller φ33-φ48
Pinch Roller φ57-φ168
Optimal Equipment*For SCH10S SCH5S SCH10 SCH5 thin wall steel pipe
Thin wall knurl wheel φ33-φ48
Thin wall knurl wheel φ57-φ89
Thin wall knurl wheel φ108-φ168

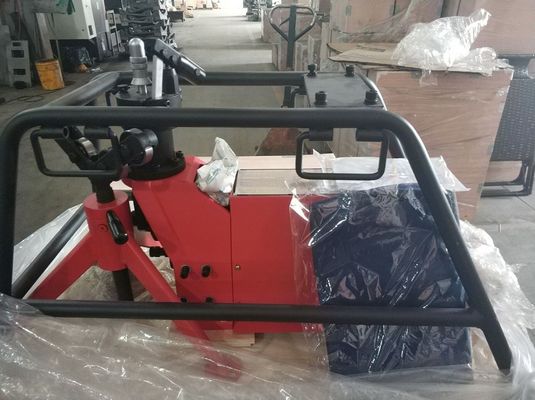

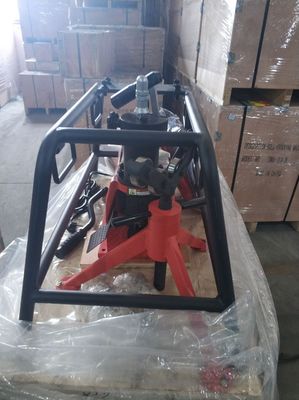

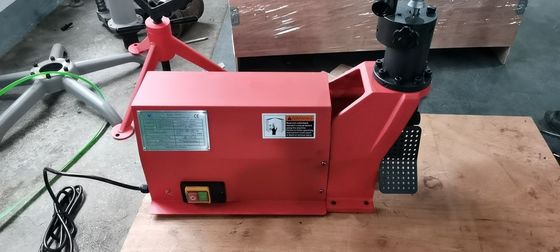

PICTURES FOR ROLL GROOVER MACHINE 1''-6''
1) Simple design of the carriage, easy to be assembled and transported
2) Equipped with integral hydraulic pump and stroke limitation device to control the depth of grooves precisely and effectively
Roll grooving machine is a kind of pipe tool for workers to make groove then connect pipe by using grooved joints such as couplings.
The principle of grooving machine is hard extrusion, when the upper roller touches the pipe surface, turn on the motor, handle the hydraulic oil pump to make the pipe rotate. The upper roller can press the pipe by shaking the handle of hydraulic oil pump, then form a groove. Roll grooving machine is widely used in fire-fighting system, Sprinkler systems, installations, larger heading units, industrial use and mining. The grooving machine is characterized by compact structure, flexible operation and beautiful shape.
|
|
