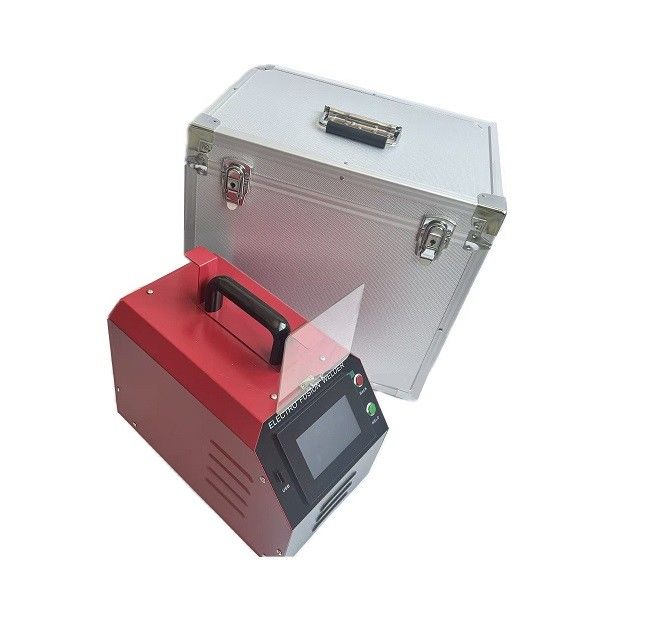

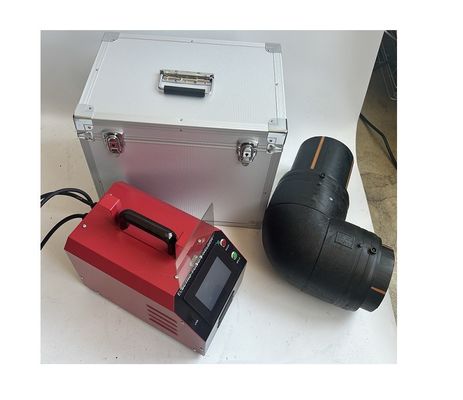

PE630 20-600mm 13KW IP55 AC20-200V Electro fusion welding machine

PE630 20-600mm 13KW IP55 AC20-200V Electro fusion welding machine

Description

Electro fusion connection process
①  This equipment is a special automatic fusion welding machine for the electrofusion connection of PE/PP and other pipes and pipe fittings, and is compatible with the connection requirements of steel skeleton plastic pipes.The control board adopts the effective value (imported special chip) to detect and control, and the control accuracy is not affected by the change of grid voltage. The signal detection channel is fully adjusted by digital potentiometer and digital calibration. Completely eliminate the impact of vibration due to transportation.The welding machine also has the function of "pipe fitting identification". If the welded pipe fitting is unqualified, the welding machine will alarm "pipe fitting error", thus ensuring the construction quality.

Application

Automatic Electro-fusion Welding Machine is used for polyethylene pipe fusion weld. With voltage & current control, the built-in resistance wire will be heating, and then the machine could meet the welding requirements for carious electric welding pipes and fittings. This welding machine has the following functions and features:

1. Designed according to ISO12176 electro-fusion welder international standard

2. Machine comes with Touch screen, all welding parameters could be displayed and set in screen.

3. By real-time monitoring weld status, abnormal welding process could be terminated in short time.

4. Equipped with automatic voltage stabilization and over voltage protection function.

5. With automatic temperature compensation to eliminate the impact from ambient temperature during welding.

6. Built-in memory, can record more than4000 welding records.

7. Welding records could be downloaded to USB flash disk via the USB interface.

8. Welding data can be printed directly with printer. Printer is for Option.

9. Welding wiring is easy and simple to avoid wiring error.10. Welding parameters input modes: (1) manually set from screen.

(2) Read in by bar code scanner (Optional function, adapt to ISO 13950 standard pipe fittings barcode)

Features

1. The machine is a specialized full-automatic electrofusion machine for PE/PP pipe, pipe fittings and other big diameter pipes welding, it is also suitable for PE steel mesh skeleton tube welding.
2. The main electrical apparatus elements are best of china, many are imported from abroad.
3. The machine can fulfill six period of welding, this technology make the welding stronger.
4. The machine with USB data interface can store 250 on-site welding data separately in six period.
5. It has many advanced capabilities like bar-code scanning for pipe information, automatic testing, machine soft resetting and others.
6. In order to adapt to the needs of field construction, the weight and volume is reduced as far as possible to convenient for carrying in the process of handling.

7. The power supply of the machine also has the characteristics of moisture-proof and shock-proof, which is convenient for working in harsh conditions in the field.
8. The power supply of this machine also has the characteristics of moisture-proof and shock-proof, which is convenient for working in harsh conditions in the field.

Product details

Use and maintenance.

1. Keep the welding machine clean.

2. Pay attention to protecting the bar-code scanner, Output cable is placed around the welder after use, to avoid trampling,

3. During welding, ensure welding machine vertically, to facilitate heat dissipation.

4. Keep screen clean is important. Screen easy dead if pushed by dust.

5. Regular maintenance.

FAQ
1. Who are we?
We are professional plumbing tools company located in Hangzhou city of China, we are close to Port Shanghai, Ningbo and Yiwu. We mainly sell to North America, Europe and the Middle East countries. Our client are tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.

2. How can we guarantee the quality?
We will test at least one pipes on every machine before shipping out. Some of our heavy duty models works well after even 7 or 8 years according to our client feedback, for all of our machine we offer one year warranty.

3. What can you buy from us? All kind of pipe tools and plumbing tools, such as pipe threading machine, pipe grooving machine, pipe cutting machine, pipe hole cutter, manual and electric pipe bender as well as the test pump.

4. Why should you buy from us not from other suppliers?
We focus on quality piping tools and machinery and service. We have almost all kind of pipe tools, place order to us we can mix various models in one shipment. Speaking:English,Spanish,Japanese,Portuguese,German,Arabic, French,Russian,Korean,Hindi,Italian.

5. How long is the leadtime?
Since the voltage of machine motor are customized, usually the lead time will be 30 days after payment.

6. How can you place order?
We accept T/T payment directly to our company account. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship any quantity but it is highly recommened to make order amount not less than USD2000.00, because according to our experience if the order are in small amount the sea shipping adding tarrif makes it not cost-effective.
