| Product Name: | HDPE Pipe Electrofusion Welding Machine | Voltage: | 48V/220V |
|---|---|---|---|
| Power: | 3.5kw | Recording Numbers: | 500 |
| Packing Size: | 440*220*310mm | Weight: | 12KG |
| Highlight: | AC220V Electrofusion Welding Machine,Portable Electrofusion Welding Machine,HDPE Pipe Electrofusion Welding Machine |
||

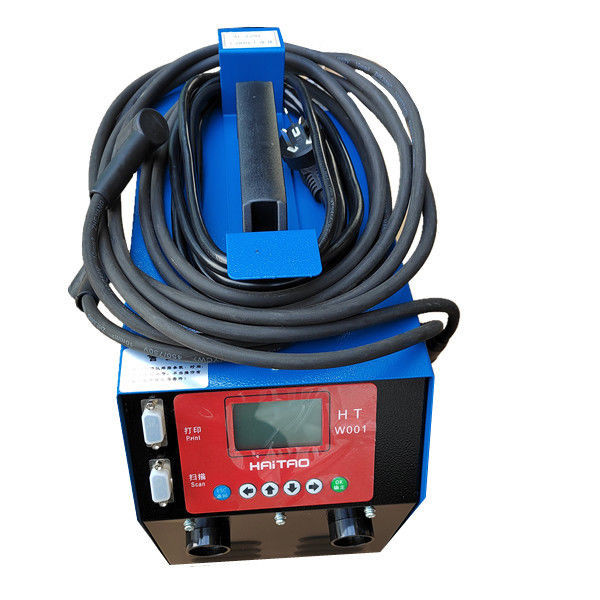

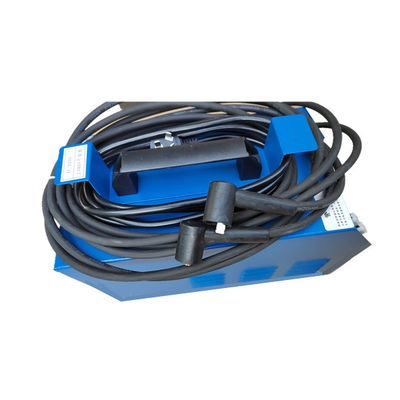

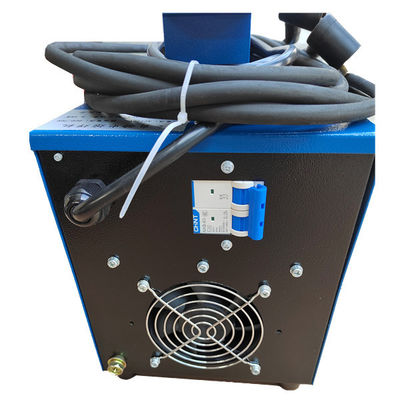

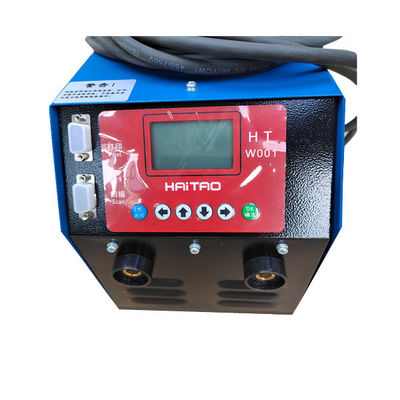

AC220V 3.5KW Portable High Accuracy Electrofusion Welding Machine
3.5KW HDPE pipe electrofusion welding machine manufacturer
Description
1. The machine is a specialized full-automatic electrofusion machine for PE/PP pipe and pipe fittings welding, it is also suitable for PE steel mesh skeleton tube welding.
2. Panels adopt a valid value (imported special chips) to detect and control accuracy won’t change with grid voltage.
3. Signal detection channel adopt digital potemeiometer adjustment fully, digital calibration. Completely eliminate the effects of vibration due to transportation.
BDDR5000V HDPE pipe electrofusion welding machine manufacturer
4. The machine can fulfill five period of welding, this technology make the welding more firmly.
5. It has many advanced capabilities like bar-code scanning for pipe information, automatic testing, machine soft start and others.
6. In order to adapt to the needs of field construction, the weight and volume is reduced as far as possible to be convenient for carrying in the process of handling.
7. The power of the machine also has the futures of moisture-proof, shock-proof and others make the machine easy to work under the harsh conditions outdoors.
Technical Parameters
| Model | HTW001 |
| Welding material | PE solid wall tube compatible Steel mesh skeleton tube |
| Welding range | DN20-DN315 |
| Supply Voltage | 220V 50Hz |
| Constant voltage/output voltage | 10V-80V |
| Constant voltage/output current | 8-135VAC |
| Max. output power | 3.5KW |
| Ambient temperature | -10º~+40º |
| Relative humidity | ≤80% |
| Time Range | 1-9999 S |
| Time Accuracy | 0.10% |
| Output voltage accuracy | 1% |
| N.G. | 10KG |
Our advantage:
1. High - level MCU is used as control core, with abundant parameter setting, measuring and perfect protective function.
2. Wide power supply and voltage input, suitable for filed electrical network level.
3. High precision control of electrial stability and time, insuring welding quality.
4. Swift output response time when power supply breaks, high stability.
5. Many programmable welding functions, suitable for welding requirement for various fittings.
6. Flexible welding parameter input mode; manual input through keyboard or bar cod scanning input.
