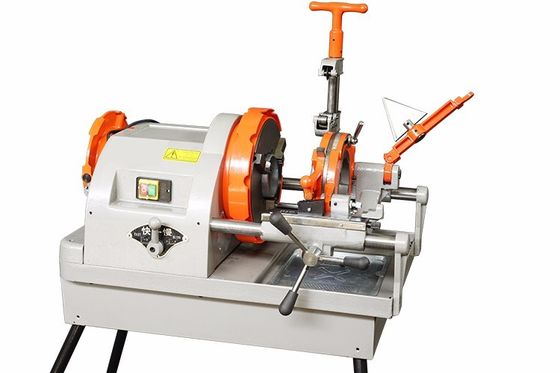

ZT-R2D Universal Electric Pipe Threading Machine 1/2″-2″ Metric Die M8 - M18

Universal Electric Pipe Threading Machine 1/2''-2'' Metric die M8-M18 Manufacturing Price

1. Size: 1/2″-2″ (Universal), Bolt – M8-M18.
2. Model NO. ZT-R2D
3. Application – MS /GI/SS, Conduit & Bolt threading
4. Motor: 750w induction type(1hp)
5. Speed: 24 RPM
6. Die head for GI /MS/SS (1/2″-2″): Quick Open
7. Die head for Bolt (1/2″-2″): Quick Open
8. Die head for Conduit (1/2″-2″): Quick Open
9. Chuck: Hammer-type with replaceable, rocker-action jaw inserts
10. Rear centering device: Cam-action
11. Oiling system: through the head, with an integral oil reservoir, self-priming, constant-flow
12. Standard alloy dies
13. Packing – Wooden Crate Packing
14. Dimension : 70*48*54cm
15. Weight: 72/60Kg

Key words:pipe threading machine, electric pipe threading machine, Iron pipe threading machine, steel pipe threader, stainless steel threading machine, portable pipe threading machine, automatic pipe threading machine

Technical data

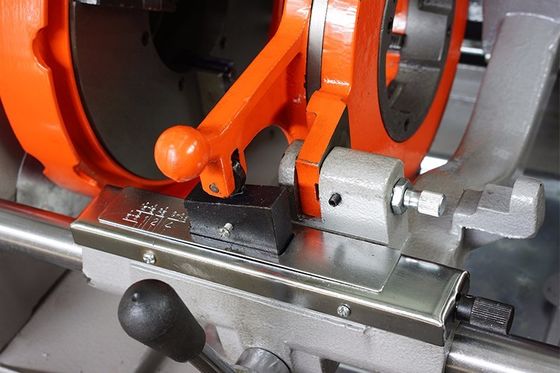

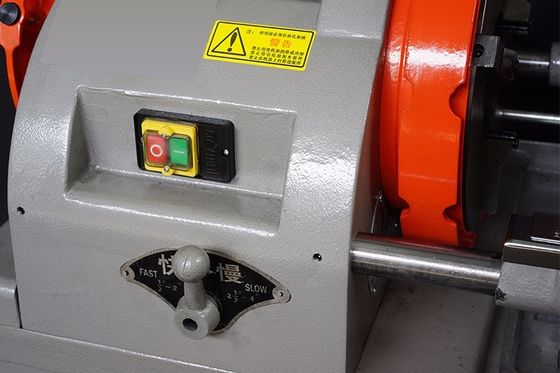

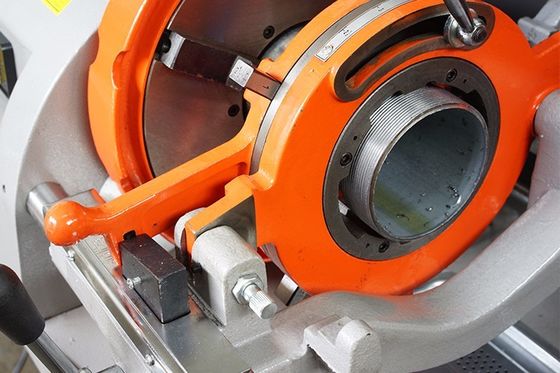

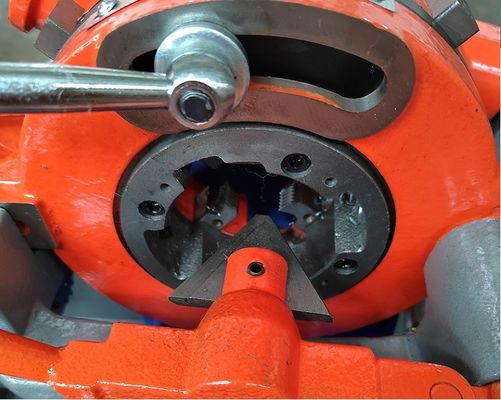

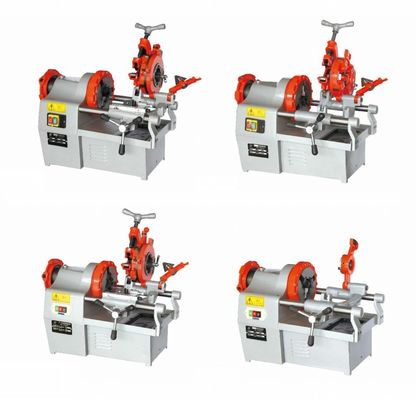

Detail photos

How to Threading

(1) Pull the cutting knife frame and chamferer; put down die head to touch the copying block. After reliable positioning of die head, press the button to start the machine.

(2) Rotate the pipe in anti-clockwise direction, rotate the hand wheel of cutting feed, and make die head get close to the pipe.

(3) Apply force to the hand wheel of cutting feed, until die head makes 3 ~4 threads on the pipe.

(4) Then, loosen the hand wheel of cutting feed, so the machine starts automatic threading. When roller of die head goes over copying block and falls down, threading die will open automatically and the threading is completed ( threading machine is required to turn back to make the threading die exit). Z1T–50A threading die shall be loosened manually.

(5) Machine halt. Return to the carriage, until the whole die head exits pipe end. Pull out die head, lock the handle and pull up the die head.

Important Notice

1. This machine shall be used with reliable grounding and anti-creep device.

2. Children are prohibited from touching this machine to avoid injury.

3. This machine shall not use the same socket with large-power machines, such as electric welding machine.

4. Pipe clamps shall not be installed on the machine, to avoid cracking of main components such as the cabinet.

5. Saponified solution shall not be used for cooling, such as water.

6. When above 2½″ pipe thread is made, it is required to adopt the low-gear processing mode,

7. When leaving factory, centrality of the machine has been measured, but pipes on the market have certain ovality at present. After machining, screw threads may be deep on one side and shallow on the other side. If they affect use, please check the quality of pipes.
