Product Details:
Payment & Shipping Terms:
|
| Product Name: | Quick Response Pvc Welding Machine 315A For Sale | Voltage: | AC220V+/-20% |
|---|---|---|---|
| Power: | 3.5kw | Current: | 60A |
| Frequency: | 50-60Hz Single Phase | Relative Humldit: | 60% |
| Protectlon Class: | IP54 | Packing Size: | 41*29*33cm |
| Weight: | 22KG | Customized: | Approved |
| Highlight: | Pvc Welding Machine IP54,Pvc Welding Machine 315A,Customized Pvc Electrofusion Welding Machine |
||

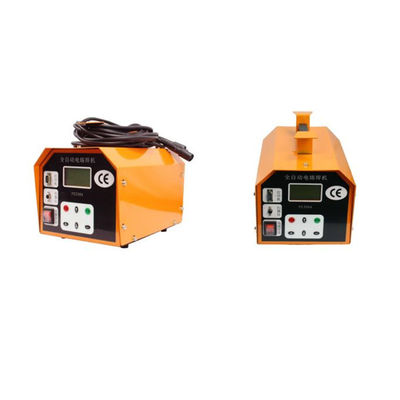

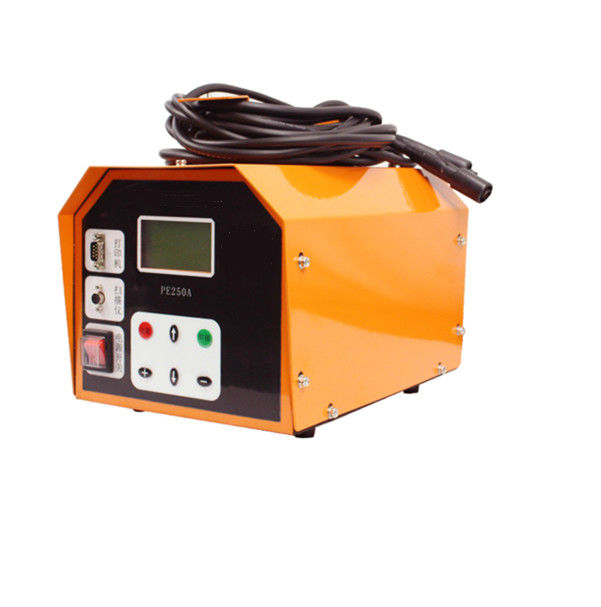

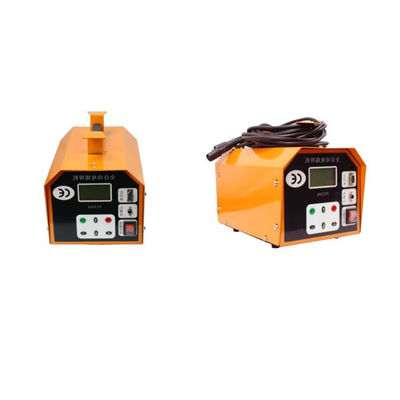

Quick Response pvc welding machine 315A for sale
Description
Electrofusion connection process
① Various advanced functions such as barcode scanning input, automatic detection, soft start and so on. In order to meet the needs of field construction, the weight and volume are reduced as much as possible, which is convenient for handling during construction.The power supply of the machine also has the characteristics of moisture-proof and shock-proof, which is convenient for working in harsh conditions in the field.
Technical Parameters
| Specifications& Models | 250A | 350A |
| Welding Range (mm) | 20-200 | 20-315 |
| Input Voltage | AC220V+/-20% 50-60Hz Single phase |
AC220V+/-20% 50-60Hz Single phase |
| Outpower Power | 2.5Kw | 3.5Kw |
| Output Voltage | 10-55V | 10-65V |
| Output Current | 50A | 60A |
| Work environment | '-15-45℃ Relative humidity 80% | '-15-45℃ Relative humidity 80% |
| Protection grade | IP54 | IP54 |
| Load factor | 60% | 60% |
| Package size(cm) | 41*29*33cm | 41*29*33cm |
| Weight | 20KGS | 22KGS |
Application
Electrofusion welding machine using true RMS control, is mainly used in connection of gas or water polyethylene (PE) pipes and fittings. It is the perfect corollary equipment for every PE pipe, pipe fitting manufactures and construction units.
The machine has higher performance than the international standard ISO12176-2 in welding voltage
stability, welding time accuracy and the temperature detection accuracy, etc.
Features
1. The machine is a specialized full-automatic electrofusion machine for PE/PP pipe, pipe fittings and other big diameter pipes welding, it is also suitable for PE steel mesh skeleton tube welding.
2. The control board adopts the effective value (imported special chip) to detect and control, and the control accuracy is not affected by the change of grid voltage.
3. The signal detection channel is fully adjusted by digital potentiometer and digital calibration. Completely eliminate the impact of vibration due to transportation.
4. The welding machine also has the function of "pipe fitting identification". If the welded pipe fitting is unqualified, the welding machine will alarm "pipe fitting error", thus ensuring the construction quality.
5. Various advanced functions such as barcode scanning input, automatic detection, soft start and so on.
6. In order to adapt to the needs of field construction, the weight and volume is reduced as far as possible to convenient for carrying in the process of handling.
7. The power supply of the machine also has the characteristics of moisture-proof and shock-proof, which is convenient for working in harsh conditions in the field.

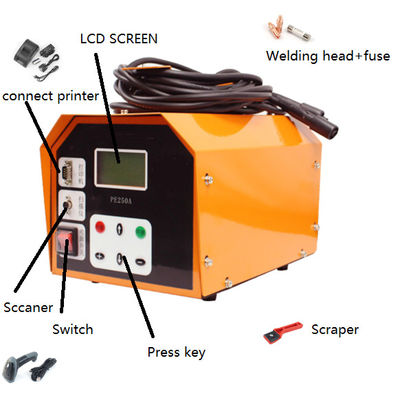

Product details
Our service:
1) We offer 1 year warranty and free spare parts. (Except for wearing parts)
2) We offer voltage and frequency of motor customization service
3) We can put your LOGO on machine plate or packing (need your authorization on brand)
4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
FAQ:
Q1 .What about your guarantee ?
A: the machine's guarantee is 12 months.
Q2. Would you accept the ODM or OEM ?
A: Accept the OEM /ODM ,but it must be No infringement of third party.
Q3. what's the MOQ?
A: Order could be discussed.
Q4. What about your delivery time? Can we receive our goods on time?
A: Delivery date is within 25-35 working days after receipt of the deposit . Yearly on-time delivery rate high than 98%.
Q5. what quality system has been gained for your factory ?
A: We have gained : ISO9001:2008, SGS CCC for our factory
