Pvc Pipe Heating HDPE Butt Fusion Welding Machine 4 Clamps 2.3kW

Wholesale 4 Clamps 2.3kW Pvc Pipe Heating Tools 160mm HDPE Butt Fusion Welding Machine

1. The machine is used to weld pipes made from PE, PP, PVDF and cannot be used to weld material without description otherwise the machine may be damaged or some accident may be resulted in.
2. Don't use the machine in a place with potential hazard of explosion
3. The machine should be operated by responsible, qualified and trained personnel
4. The machine should be operated on a dry area. The protective measures should be adopted when it's used in rain or on wet ground.
5. The machine is operated by 220v±10%, 50Hz, if extended wire should be used, it should have enough lead section according to its length.

Feature

1. Suitable for welding of plastic pipes and fittings made of HDPE PVDF and MPP, and can be operated in any complex work condition.
2. Consists of basic frame, planning tool, heating plate and support for planning tool and heating plate.
3. Removable PTFE coated heating plate with separate temperature control system.
4. Electrical planning tool with safety limit switch enables to start it only when it is locked in operation position
5. Slant design for basic frame.
6. Low starting pressure and high reliable seal structure.
7. Changeable welding position brings more convenience while welding various fittings.
8. Separate two-channel timer records times in soaking and cooling phases.
9. High- accurate and shockproof pressure meter indicates clearer readings.

Butt Fushion Welding Machine Technical data:

Other name:

hdpe heat fusion welding machine, polyethylene fusion welding machine, pe pipe butt fusion, hdpe pipe jointing digital heater, polyethylene pipe butt welder, pipe fusion welding tool, poly pipe fusion welder

This hdpe butt fusion welding machines is able to weld pipes and fittings with material pe pipe, hdpe pipe, operation easily and suitable for any complex work condition. It consists of basic frame, hydraulic unit, planning tool, heating plate, support for planning tool & heating plate, and optional parts.

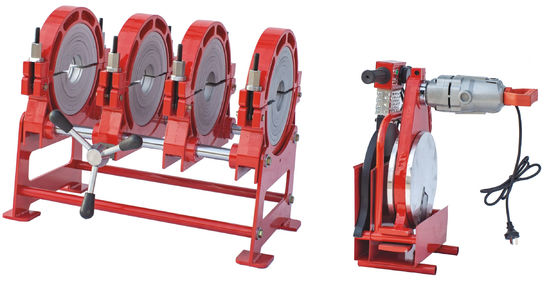

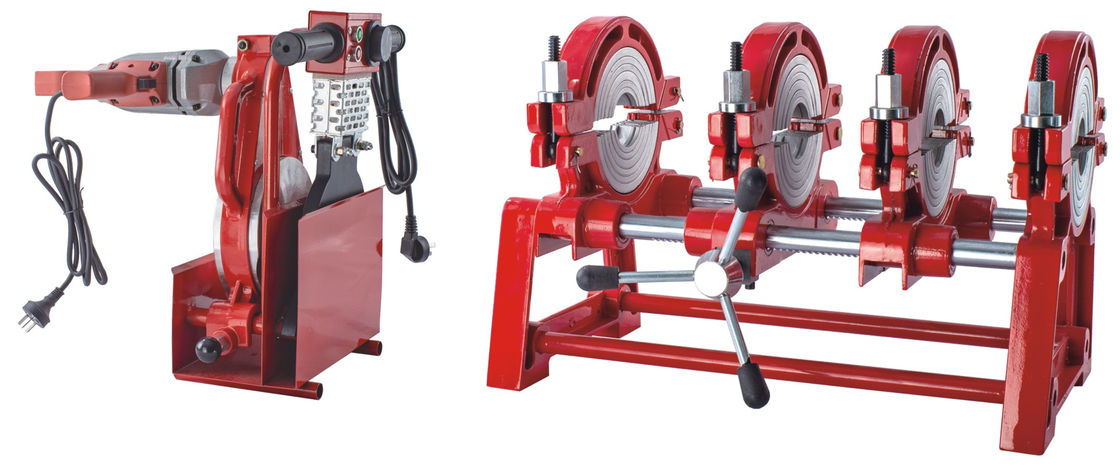

Main Body
The main body supports and center the plastic pipes with two fixed and two movable clamps.

Using the hydraulic pressure on the system, the two pistons on the carrying metal bars move the clamps forward and backward and supply the necessary movement for the welding process.

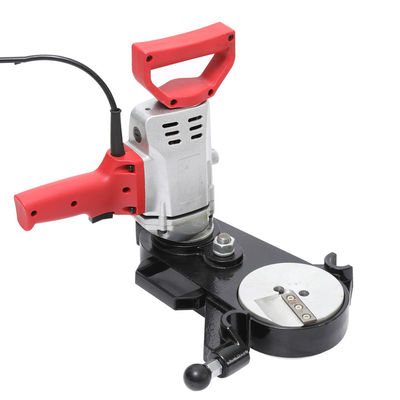

Milling Cutter
The milling cutter is the tool which clean and smooth the both ends of the pipes before the heating process.

Heater
The pipe ends will be heated by this heater before the welding process. The setting of the heater will be done by the thermostat on the plates. Butt welding machine PTFE-coated heating element and uniform surface temperature.

Application
