STT50A wholesale Pipe Cutting amd threading machine for stainless steel with factory price

 STT50A wholesale Pipe Cutting amd threading machine for stainless steel with factory price


The threading machine is composed of a body, a motor, a chuck, a die head, a chamfering device, a cutter frame, a knife feed device, and a cooling system. There are generally two types of threading machines in the market. One is a heavy-duty threading machine, all made of aluminum alloy, with large weight, stable performance, and high price. It is suitable for long-term projects and is not easy to move. The other is a light threading machine, the lower part is made of iron plate, the upper part is made of aluminum alloy, which is small in weight, strong in flexibility, low in price, and low in stability. It is suitable for projects with short construction period and frequent flow.

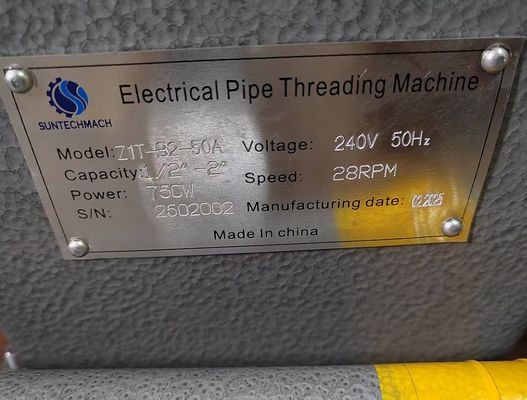

Specifications
Model: STT50A
Machining size: 1/2"-2" (Φ13-Φ50) for pipe
Motor power: 750W
Speed: 28rpm
G.W./N.W.: 78/70kgs
Packing size: 700*440*540mm

Standard Equipment
Quick-open die head
Dies set 1/2”-3/4”
Dies set 1”-2”
Support
Tools bag

Optional die head
Quick-open die head
Dies set: M10, M12, M14-16, M18-M22, M24-
27, M30, M33
Dies set: M8, M10, M12, M14, M16, M18,
M20, M22, M24
Dies set: BSW ¼”, 3/8”, ½”, 5/8”, ¾”, 7/8”, 1”

Key words:pipe threading machine, electric pipe threading machine, Iron pipe threading machine, steel pipe threader, stainless steel threading machine, portable pipe threading machine, automatic pipe threading machine

Technical data

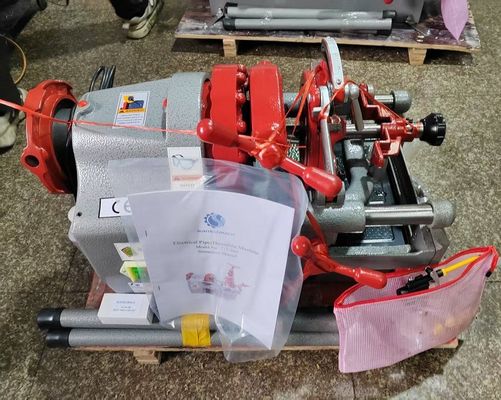

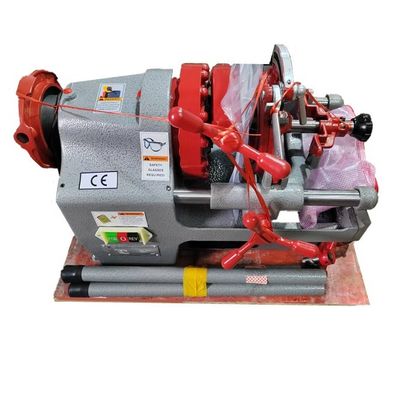

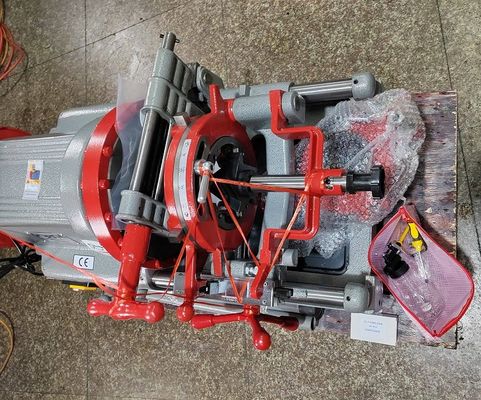

Detail photos















A pipe threading machine is a tool used to create threads on the end of a pipe. There are two types of threading machines: electric and manual. Both types use a die head to cut the threads, but the way they power the die head is different.
Electric threading machines use an electric motor to rotate the die head. The motor is connected to a gearbox that reduces the speed and increases the torque. The gearbox then drives the spindle, which rotates the die head. The die head is mounted on a carriage that moves along the length of the pipe. The carriage is controlled by a hand-held pendant that the operator uses to move the carriage and start the threading process. Once the die head has cut the threads, the operator reverses the carriage to remove the die head from the pipe.

Important Notice
1. This machine shall be used with reliable grounding and anti-creep device.
2. Children are prohibited from touching this machine to avoid injury.
3. This machine shall not use the same socket with large-power machines, such as electric welding machine.
4. Pipe clamps shall not be installed on the machine, to avoid cracking of main components such as the cabinet.
5. Saponified solution shall not be used for cooling, such as water.
6. When above 2½″ pipe thread is made, it is required to adopt the low-gear processing mode,
7. When leaving factory, centrality of the machine has been measured, but pipes on the market have certain ovality at present. After machining, screw threads may be deep on one side and shallow on the other side. If they affect use, please check the quality of pipes.
