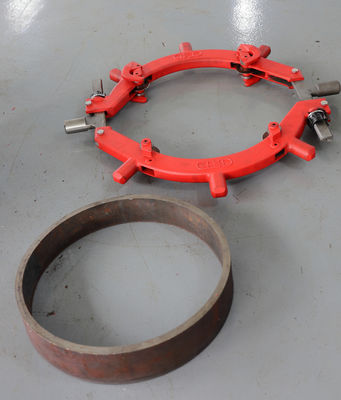

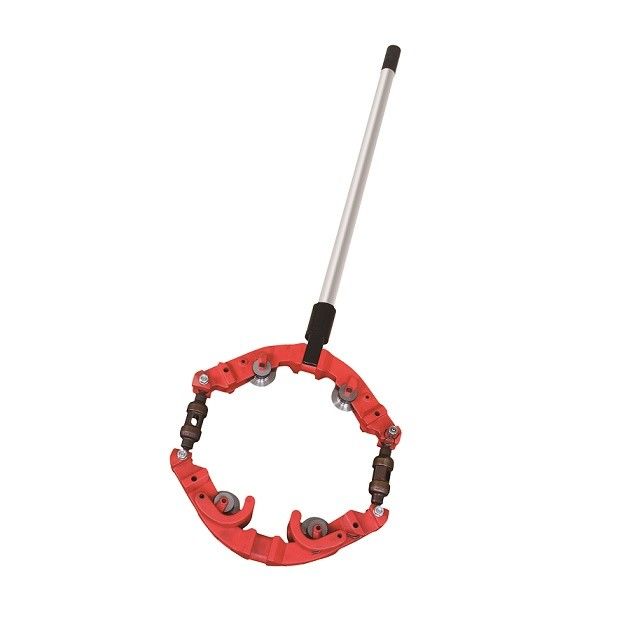

H14S 5 Inch To 14 Inch 127mm Metal Pipe Cutters high precision

H14S 14inch Big Size Hinged High Grade Metal Pipe Cold Cutting Machine Pipe Cutters

Pipe cutter Description:
1.The low profile design of H14S cutter needs only 5 inch (127 mm) clearance for up to 14 inch pipe diameter.
2.Safe, clean, straight cuts are easy with these manual-operated cutters.
3.Cold cut large diameter steel, most stainless steel pipe in close quarters.
4.H14S cutters are supplied with a slip-on handle that is used to turn and tighten the cutter.
5.With good leverage from the tool’s long handle, pipe snaps off squarely before the cutter wheels penetrate halfway through the pipe.
6.Provides a square cut and can be used in close quarters anywhere – in the ditch, underwater, in noise-free zones,over head, in racks of pipes, etc.

Operation Instructions

1. Choose the cutter wheel for the right pipe application: steel, cast iron, stainless steel etc.

2. Turn handle to open cutter enough to accommodate the size of pipe to be cut.

3. Place cutter around pipe with spring-loaded guides on top. Connect lower yoke by pushing upward to locked position. Turn the cutter handle until the wheels are uniformly touching the pipe.

4. Begin to cut the pipe by moving the entire cutter in a back and forth motion that constitutes a 90 – 110 degree swing.

5. Check to make sure that the wheels are tracking uniformly. If so, tighten the handle one-half turn each time that you bring the cutter handle back toward yourself.

6. Complete the cut by maintaining pressure on the cutter wheels as you continue to swing the cutter in a back and forth motion.

WARNING: DO NOT STOP FOR ANY SIGNIFICANT AMOUNT OF TIME IN THE MIDDLE OF A CUT! THE CUTTING ACTION GENERATES HEAT ON THE PIPE. UPON COOLING, THE WHEELS MAY BECOME WEDGED IN THE TRACK. THIS IS ESPECIALLY TRUE FOR DUCTILE IRON PIPE.

FAQ

1. Who are we?
We are professional plumbing tools company located in Hangzhou city of China, we are close to Port Shanghai, Ningbo and Yiwu. We mainly sell to North America, Europe and the Middle East countries. Our client are tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.

2. How can we guarantee the quality?
We will test at least one pipes on every machine before shipping out. Some of our heavy duty models works well after even 7 or 8 years according to our client feedback, for all of our machine we offer one year warranty.

3. What can you buy from us? All kind of pipe tools and plumbing tools, such as pipe threading machine, pipe grooving machine, pipe cutting machine, pipe hole cutter, manual and electric pipe bender as well as the test pump.

4. Why should you buy from us not from other suppliers?
We focus on quality piping tools and machinery and service. We have almost all kind of pipe tools, place order to us we can mix various models in one shipment. Speaking:English,Spanish,Japanese,Portuguese,German,Arabic, French,Russian,Korean,Hindi,Italian.

5. How long is the leadtime?
Since the voltage of machine motor are customized, usually the lead time will be 30 days after payment.

6. How can you place order?
We accept T/T payment directly to our company account. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship any quantity but it is highly recommened to make order amount not less than USD2000.00, because according to our experience if the order are in small amount the sea shipping adding tarrif makes it not cost-effective.
