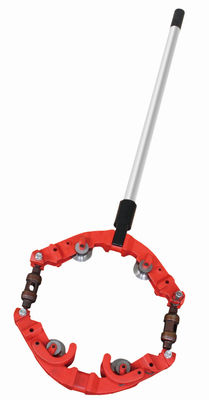

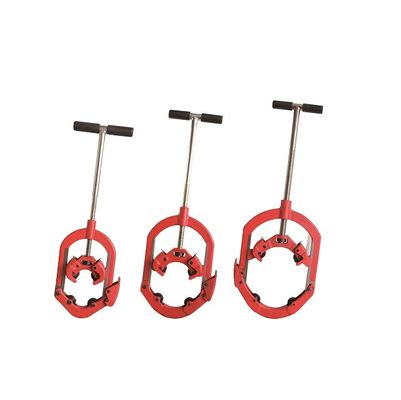

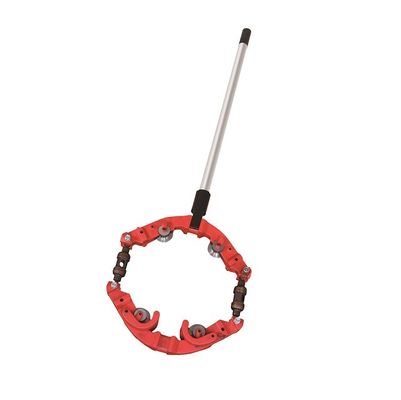

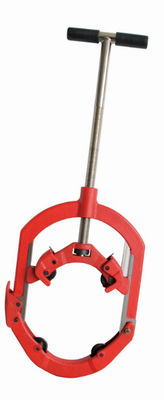

H4S 2" To 4'' Metal Pipe Cutters Manual Steel Pipe Cutter 6mm Wall thickness

H4S Portable Hinged High Grade Metal 2" to 4'' Steel Stainless Steel Pipe Cutter, Manual Steel Pipe Cutter

Description

1. Pipe cutter is designed for rapid cutting of 2” through 4” steel pipe, heavy-wall steel pipe and cast-iron pipe.

2. Pipe cutter operates with minimal cutter rotation (90-110 degree) as necessary for tight quarters.

3. Cold cutting: no spark, no big heat

4. Squeezing cutting with better working performance

5. Portable and light weight, easy for transportation.

6. Use for the already installed pipe fittings.

7. Cutting blade is interchangeable with Reed.

8. Package: Carton + Foam, strong enough to protect the pipe cutter.

Operation Instructions

1. Choose the cutter wheel for the right pipe application: steel, cast iron, stainless steel etc.

2. Turn handle to open cutter enough to accommodate the size of pipe to be cut.

3. Place cutter around pipe with spring-loaded guides on top. Connect lower yoke by pushing upward to locked position. Turn the cutter handle until the wheels are uniformly touching the pipe.

4. Begin to cut the pipe by moving the entire cutter in a back and forth motion that constitutes a 90 – 110 degree swing.

5. Check to make sure that the wheels are tracking uniformly. If so, tighten the handle one-half turn each time that you bring the cutter handle back toward yourself.

6. Complete the cut by maintaining pressure on the cutter wheels as you continue to swing the cutter in a back and forth motion.

WARNING: DO NOT STOP FOR ANY SIGNIFICANT AMOUNT OF TIME IN THE MIDDLE OF A CUT! THE CUTTING ACTION GENERATES HEAT ON THE PIPE. UPON COOLING, THE WHEELS MAY BECOME WEDGED IN THE TRACK. THIS IS ESPECIALLY TRUE FOR DUCTILE IRON PIPE.
