H8S 6mm 8'' Manual Stainless Steel Metal Pipe Cutters Red high efficiency

6inch to 8inch Portable Hinged High Grade Metal 6" to 8'' Steel Stainless Steel Pipe Cutter, Manual Steel Pipe Cutter

Description

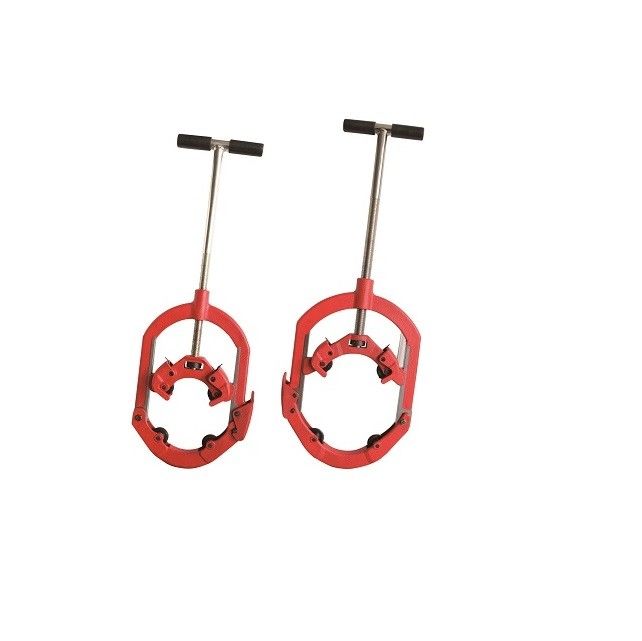

Portable pipe cutter

1. Designed for rapid cutting of 6” through 8” steel pipes.

2. The cutters operate with minimal cutting rotation (90-110 degree), suitable for tight quarters.

3. During cutting operation, there is no sparks, serving jobs with such special requirements.

4. Portable and lightweight, easy for transportation

5. Cold cutting: no spark, no big heat

6. Squeezing cutting with better working performance

7. Portable and light weight, easy for transportation.

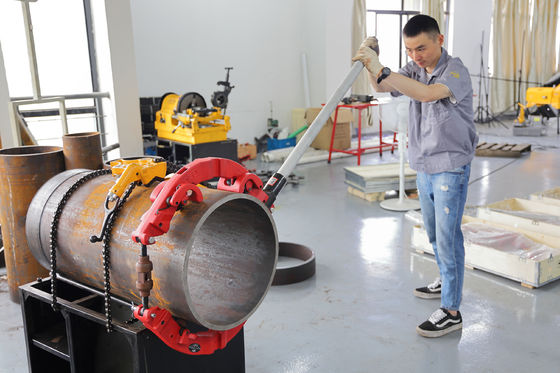

Operation Instructions

1. Choose the cutter wheel for the right pipe application: steel, cast iron, stainless steel etc.

2. Turn handle to open cutter enough to accommodate the size of pipe to be cut.

3. Place cutter around pipe with spring-loaded guides on top. Connect lower yoke by pushing upward to locked position. Turn the cutter handle until the wheels are uniformly touching the pipe.

4. Begin to cut the pipe by moving the entire cutter in a back and forth motion that constitutes a 90 – 110 degree swing.

5. Check to make sure that the wheels are tracking uniformly. If so, tighten the handle one-half turn each time that you bring the cutter handle back toward yourself.

6. Complete the cut by maintaining pressure on the cutter wheels as you continue to swing the cutter in a back and forth motion.

WARNING: DO NOT STOP FOR ANY SIGNIFICANT AMOUNT OF TIME IN THE MIDDLE OF A CUT! THE CUTTING ACTION GENERATES HEAT ON THE PIPE. UPON COOLING, THE WHEELS MAY BECOME WEDGED IN THE TRACK. THIS IS ESPECIALLY TRUE FOR DUCTILE IRON PIPE.

Service

HZ SUNTECH not only supplies reliable, durable and professional tools but we also aim to provide an excellent service to installers.

We offer a range of spare parts available for many products.

If you require spare parts, please contact our offices who will be able to advice of list price and availability.

FAQ

1. Who are we?
We are professional plumbing tools company located in Hangzhou city of China, we are close to Port Shanghai, Ningbo and Yiwu. We mainly sell to North America, Europe and the Middle East countries. Our client are tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.

2. How can we guarantee the quality?
We will test at least one pipes on every machine before shipping out. Some of our heavy duty models works well after even 7 or 8 years according to our client feedback, for all of our machine we offer one year warranty.

3. What can you buy from us? All kind of pipe tools and plumbing tools, such as pipe threading machine, pipe grooving machine, pipe cutting machine, pipe hole cutter, manual and electric pipe bender as well as the test pump.

4. Why should you buy from us not from other suppliers?
We focus on quality piping tools and machinery and service. We have almost all kind of pipe tools, place order to us we can mix various models in one shipment. Speaking:English,Spanish,Japanese,Portuguese,German,Arabic, French,Russian,Korean,Hindi,Italian.

5. How long is the leadtime?
Since the voltage of machine motor are customized, usually the lead time will be 30 days after payment.

6. How can you place order?
We accept T/T payment directly to our company account. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship any quantity but it is highly recommened to make order amount not less than USD2000.00, because according to our experience if the order are in small amount the sea shipping adding tarrif makes it not cost-effective.
