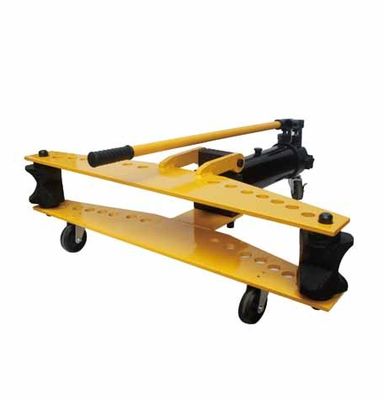

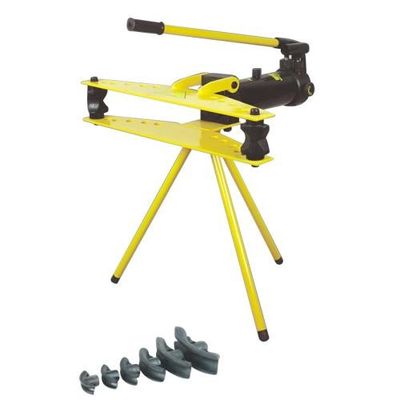

STB100 SUNTECHMACH aluminum Manual type hydraulic pipe bender 1/2″-4″

● The Manual Hydraulic Pipe Benders are designed for precision cold bending of thick-walled pipes
(gas, water and steam pipes, non-heated black iron pipes, galvanized pipes, schedule 40 & 80) up to 90°following GB/T 3091,DIN 2440,EN 10255,BS1387 standards.
● These benders are ideal for plumbing, sanitary and heating installation on construction sites, for apparatus and boiler making and for industrial applications.

We offer a wide range of Conduit Pipe Bender. They are heavy Duty that are especially used in the different engineering
industries. We offer these in different size and shapes and also customize as per the specifications of the customers. We design the given product following industrial standards by making use of best quality material and modern technology.

How to use the manual pipe bending machine?

1. Tighten the release valve by turning clockwise.
2. Loosen the vented oil bolt.
3. Grease die cover, swagging blocks and the pipe to be bent.
4. Lift the upper plate and affix the bending die to the end of the cylinder ram.
5. Turn the swagging blocks so their grooves face toward the pipe die.
6. To account for the pipe shortening during the bending process, make sure the pipe extends beyond the swagging blocks.
7. Set the swagging blocks closer together for short pipes, to ensure that the pipe extends beyond the swagging blocks.
8. Return the upper plate to original position and use the advance the die. Note: only one handle is included with the bending machine.
9. Use the forming pump to apply heavy pressure to bend the pipe to its desired angle.
10. When finished bending, release the pressure by opening the release valve. The ram will automatically retreat. Lift the upper plate to take out the bent pipe.
11. Note: by using a combination of dies and swagging block settings you can achieve the desired angle. eg. for a clean right angled finish start off by using the swagging blocks at the end of the pipe bender and work your way in.

To improve the efficiency of bending work, we had designed 1/2″-2″ electric pipe bender as below picture.

FAQ
1. Who are we?
We are professional plumbing tools company located in Hangzhou city of China, we are close to Port Shanghai, Ningbo and Yiwu. We mainly sell to North America, Europe and the Middle East countries. Our client are tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.
2. How can we guarantee the quality?
We will test at least one pipes on every machine before shipping out. Some of our heavy duty models works well after even 7 or 8 years according to our client feedback, for all of our machine we offer one year warranty.
3. What can you buy from us? All kind of pipe tools and plumbing tools, such as pipe threading machine, pipe grooving machine, pipe cutting machine, pipe hole cutter, manual and electric pipe bender as well as the test pump.
4. Why should you buy from us not from other suppliers?
We focus on quality piping tools and machinery and service. We have almost all kind of pipe tools, place order to us we can mix various models in one shipment. Speaking:English,Spanish,Japanese,Portuguese,German,Arabic, French,Russian,Korean,Hindi,Italian
5. How long is the leadtime?
Since the voltage of machine motor are customized, usually the lead time will be 30 days after payment.
6. How can you place order?
We accept T/T payment directly to our company account. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship any quantity but it is highly recommened to make order amount not less than USD2000.00, because according to our experience if the order are in small amount the sea shipping adding tarrif makes it not cost-effective.
