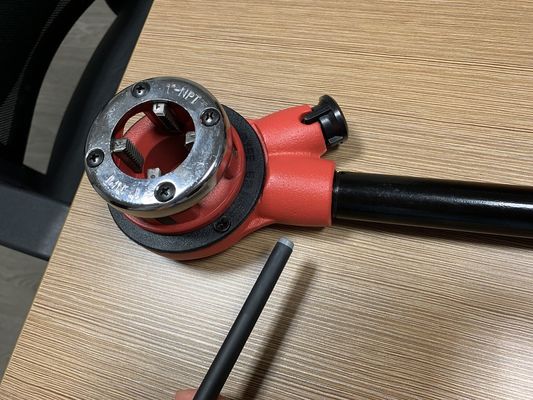

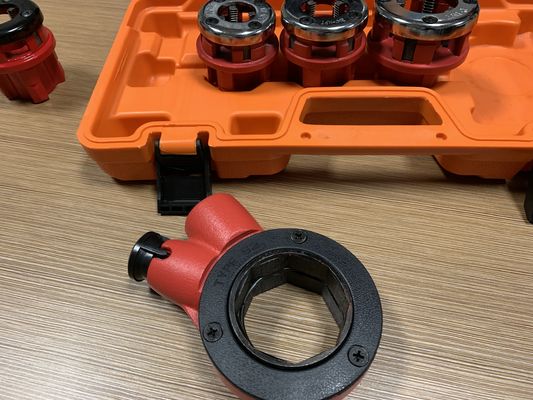

Portable Fully Manual Ratchet Pipe Threader With Several Size

Manual ratchet threader

Model: ST-P62-5

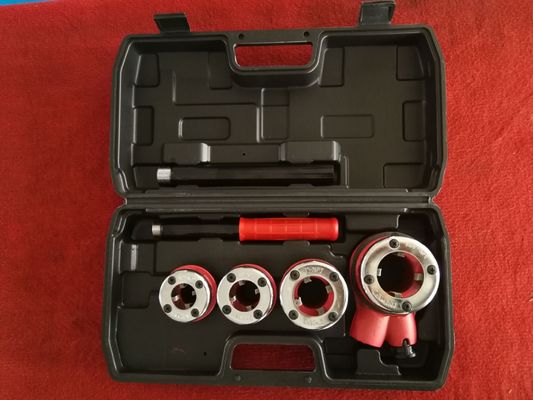

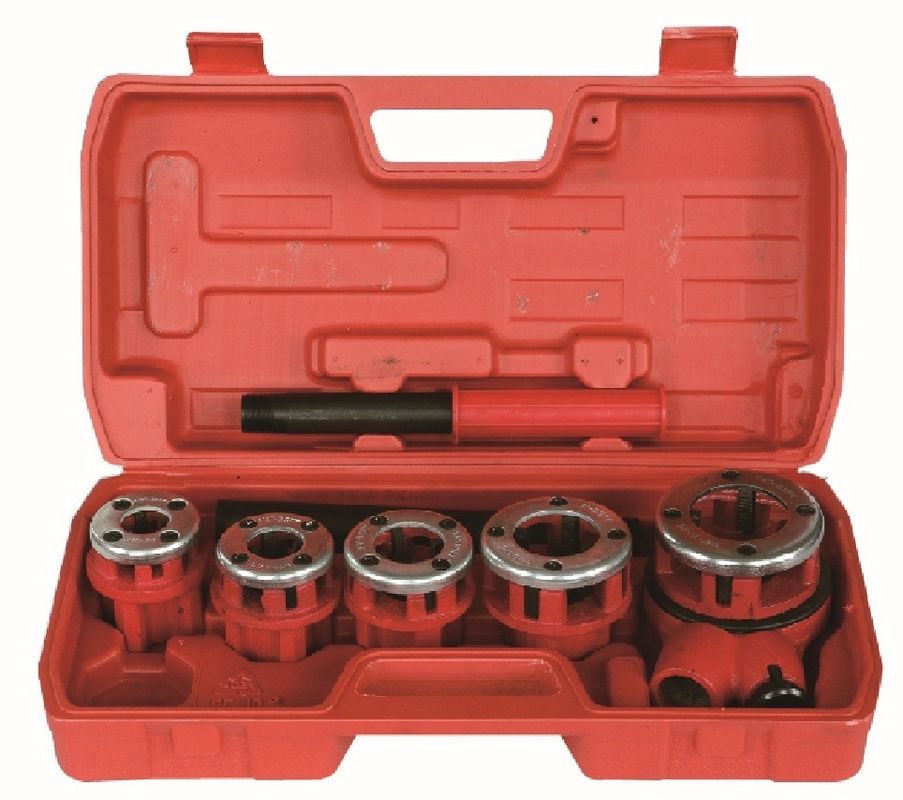

Capacity: 1/4"-1 1/4" (5 pieces kit)

Die: 3/8",1/2", 3/4", 1", 1-1/4" NPT or BSPT either

Package: 4 sets /carton

G.W/N.W.: 23/22KGS

Packing size: wooden case 40.5x37x23cm

Many other size in option

62 series

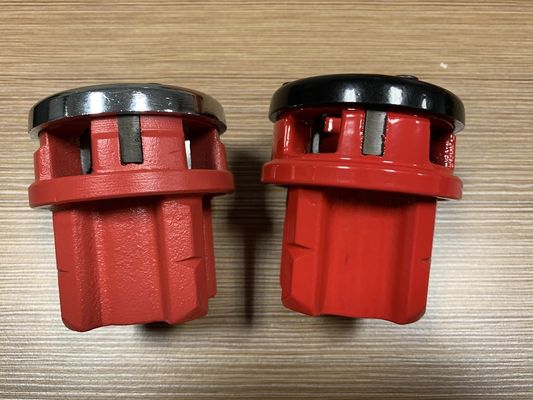

1/2"-1 1/4" 4pcs die head set

3/8"-1 1/4" 5pcs die head set

1/4"-1 1/4" 6pcs die head set

63 series

1/2"-2" 6pcs die head set

3/8"-2" 7pcs die head set

1/4"-2" 8pcs die head set

12R series

1/2"-2" 6pcs die head set

114 series

2 1/2"-3"

3 1/2"-4"1pc die head set

112 series

1/2"-1 1/4" 1pc die head set

92 series

1/2"-1"3pcs die head set

manual pipe threading machine

manual pipe threaders

62 manual ratchet threader

A pipe threading machine is a tool used to create threads on the end of a pipe. There are two types of threading machines: electric and manual. Both types use a die head to cut the threads, but the way they power the die head is different.

Electric threading machines use an electric motor to rotate the die head. The motor is connected to a gearbox that reduces the speed and increases the torque. The gearbox then drives the spindle, which rotates the die head. The die head is mounted on a carriage that moves along the length of the pipe. The carriage is controlled by a hand-held pendant that the operator uses to move the carriage and start the threading process. Once the die head has cut the threads, the operator reverses the carriage to remove the die head from the pipe.

Manual threading machines, on the other hand, use a crank to rotate the die head. The operator turns the crank by hand, which rotates the spindle and the die head. The die head is also mounted on a carriage that moves along the length of the pipe. The operator must move the carriage by hand and start the threading process manually. Once the threads are cut, the operator reverses the carriage to remove the die head.

Regardless of the type of threading machine, the die head is the most important component. The die head contains several dies that are shaped like screws. The dies cut the threads into the pipe as the die head rotates. The dies are held in place by a set of jaws that are tightened around the pipe. The jaws are also part of the carriage that moves along the length of the pipe.

In conclusion, a pipe threading machine is a tool used to create threads on the end of a pipe. It does this by rotating a die head that contains several dies that cut the threads into the pipe. The machine can be either electric or manual, but both use a die head mounted on a carriage that moves along the length of the pipe. The operator controls the movement of the carriage and starts the threading process either with a hand-held pendant or manually turning a crank.
