CNC Automatic HDPE Pipe Butt Fusion Welding Machine 90 - 250mm

HZ SUNTECH Automatic HDPE pipe butt fusion welding machine 90-250mm, CNC automatic model​


Description

Fully automatic butt fusion welding machine is suitable for automatically butt fusion welding of plastic pipes and fittings made of PE, PP, and PVDF in construction site or workshop. Automatic butt fusion plastic pipe welding machine can be managed automatically by using our auto-control system, this would eliminate any risk of error due to the operator. It's available in two versions, one is manual extraction of the heating plate, another is intergrated mechanical extraction of the heating plate.

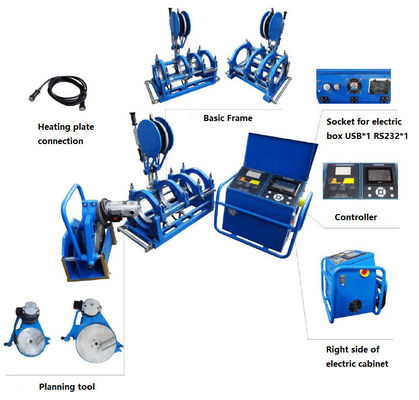

CNC butt fusion machine composes of machine body, auto-control system, planning tool and heating plate. It is easy to use software and control panel allow to view the most widely used welding standards. By selecting any one of the standard and pipe diamater or SDR, all the welding parameters ( pressure, time, temperature ) would be automatically calculated according to its standard..

At the end of the welding cycle, all data are stored in the in-built memory, up to 2000 records. It is equipment with a USB port for welding report in encrypted EXCEL.

Technical specifications:
1. Welding range: from 90mm to 250mm in diameter
2. Heater maximum temperature: 270° C
3. Trimmer Planer power: 1500W 220V 50Hz
4. Heater power: 2200W 220V 50Hz
5. Hydraulic unit power: 750W (0-63bar) 220V 50Hz
6. Temp. Deviation in surface: 170-270° C ±5° C

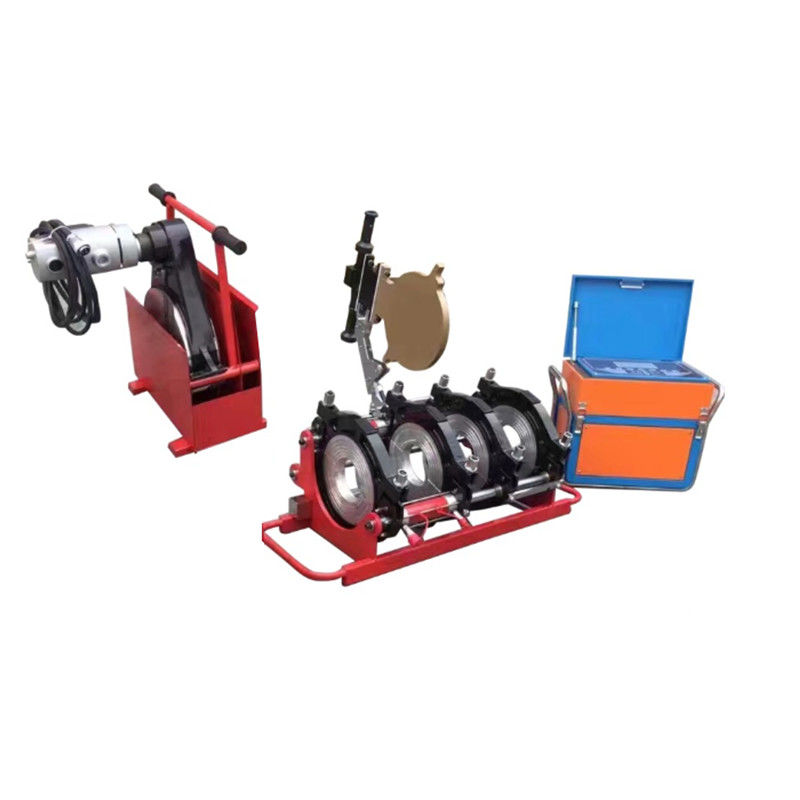

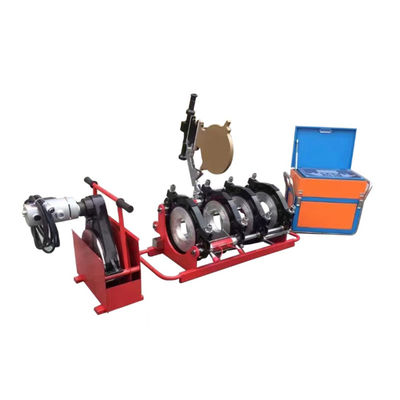

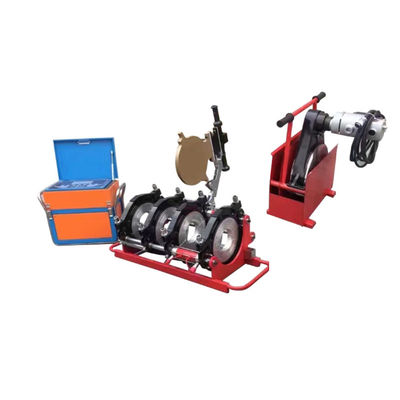

The whole machine consists of machine body, hydraulic unit, facer, heater, support for heater & facer and microcomputer control system.

• Computer control is according to national standard GB/T20674'1
• At the predetermined parameters range, all phases of butt welding process are controlled auomatically.
• Error analysis system will recognize the error with predetermined parameters.
• Computer can save 1000 pieces of welding records and input the records to computer.
• with mini printer, can review welding records welding process at site.

Our service:
1) We offer 1 year warranty and free spare parts. (Except for wearing parts)
2) We offer voltage and frequency of motor customization service, such as 110v 60hz.
3) We can put your LOGO on machine plate or packing (need your authorization on brand)
4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.

Presales technical assistance
When we get a damande from a customer or a potential customer who wants to buy us a product ,it is our standard procedure to supply the best solution to meet their needs.

The processing of production
When we get a order from our customers ,it is our standard procedure to give our loyal customer one prodection processing table including parts name&its lead time ,total assembling time and testing scheme within 1-2 days.

Train
Only by having a perfect knowledge of our products ,our customers are able to use them in the best way.it is our promises to invest in custom training.These courses are aimed to teach our customers how to operate the products in the best way and how to get the"first aid" when necessary.

After sales technical Assistance
Service centre can solve all kinds og technical issues as well as supply various types of spare parts in the shortest time.
