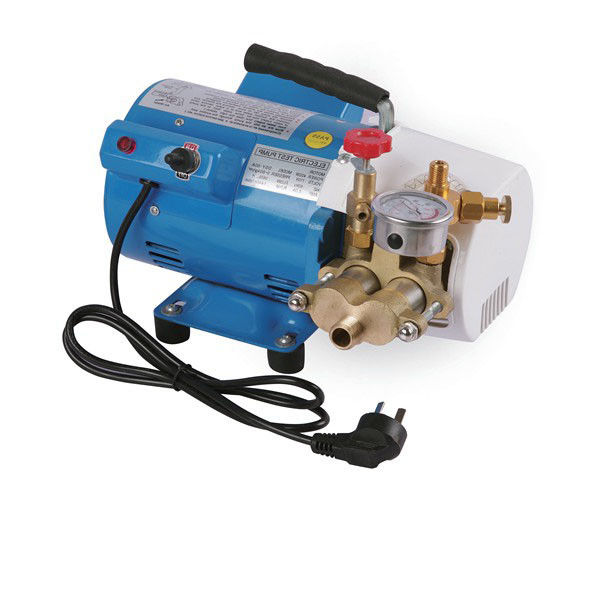

DSY60 250W Electric Hydraulic Test Pump 0-60 Bar 180L/H

DSY60 250W Electric Hydraulic Test Pump 0-60 Bar (6.0MPa) 180L/H

Specifications

Product Description

The SUNTECHMACH DSY60 electric hydraulic test pump is designed for quick and exact compression testing and leak detection in heating, compressed air, refrigeration, oil installations, sprinkler systems and other small bore pipe applications. Driven by a 250W induction motor, it pressurizes pipe systems up to 60 bar (860 psi) automatically — no manual pumping. Compact and portable (13.5 kg), with 1/2" BSPP connections, it is ready to use on PPR, PVC and PE pipe installation jobs.

Key Features

• Electric Drive — 250W induction motor, no manual pumping, consistent pressure.
• 0-60 Bar (860 psi) Testing Range — 0-6.0 MPa for leak and compression tests.
• 180 L/H Flow — Fast pressurization of small bore systems.
• 110V/220V Selectable — Fits different market voltages.
• Portable & Compact — 13.5 kg with carrying box; job-site ready.
• Complete Accessories — Pressure hose, pressure gauge and seal set included.

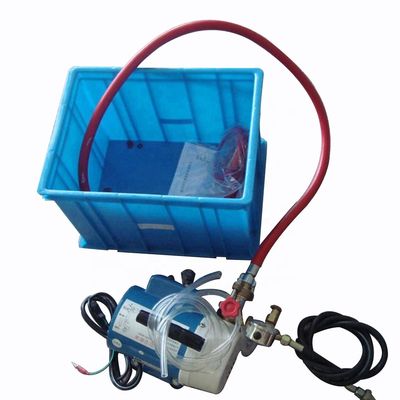

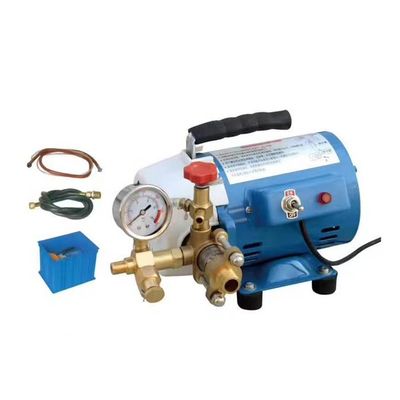

What's Included

• 1x DSY60 electric test pump
• 1x Pressure hose
• 1x Pressure gauge
• 1x Seal set
• 1x Operation manual + 12-month warranty card

Applications

• Heating installations (leak testing)
• Sprinkler system testing
• Compressed air & refrigeration systems
• Oil installations
• Water pipe pressure testing (PPR / PVC / PE pipe & fittings)
• Other small bore pipe applications

Packaging & Quality Assurance

One piece per carton with plastic box inside. PP fittings packed in nylon bags. ISO9001 quality system; every pump tested before shipment.

After-Sales Support

• 12-month warranty
• WhatsApp: +86-13777804353 ｜ Email: vivian@cnsuntech.com
• 24-hour response for inquiries and after-sales

Operation Guide

1. Check that the gasket and the joint are well matched; connect the water inlet pipe correctly.
2. Connect to a socket with leakage protection; the fire wire and ground wire must be connected correctly.
3. Loosen the pressure regulating knob first — never start the motor with load.
4. Fill the tank with water filtered by a 100 mesh/inch filter; the suction port must stay under the water surface.
5. After the test, loosen the pressure regulating knob, add a little oil (20#), and run the pump for half a minute.
6. Never run the pump without water (damages sealing and piston rings).

Common Faults & Solutions

FAQ

1. WHO ARE WE? — We are a professional pipe machine manufacturer in Hangzhou, China. Our team has worked in the pipe tool industry since 1989, and the company was registered in 2014. We are close to Shanghai, Ningbo and Yiwu ports, exporting mainly to North & South America, South Asia and the Middle East.
2. HOW CAN WE GUARANTEE THE QUALITY? — We always test at least one pipe on every machine before shipping. All our machines carry a 12-month warranty.
3. WHAT CAN YOU BUY FROM US? — Pipe threading machines, roll grooving machines, pipe cutting machines, pipe bending machines, plastic pipe welding machines, pressure test pumps and pipe tools.
4. WHY SHOULD YOU BUY FROM US? — We offer a full range of pipe tools; you can mix different models in one shipment. Multilingual support: English, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.
5. HOW LONG IS THE LEADTIME? — Usually 10-35 days after payment, depending on motor voltage customization.
6. HOW CAN YOU PLACE ORDER? — We accept T/T payment to our company account; online shop payment by credit card is also available.
7. HOW TO SHIP? — By sea to port for bulk orders; door-to-door delivery for small shipments.
8. WHAT IS THE MOQ? — No strict MOQ; however, we recommend an order amount of at least USD 2000 for cost-effective overseas shipping.
9. IS OEM ACCEPTABLE? — Yes. For bulk orders we can make nameplates and customized packaging in your brand.
