DSY60A 400W Electric Hydro Test Pump 6L/Min 60 Bar

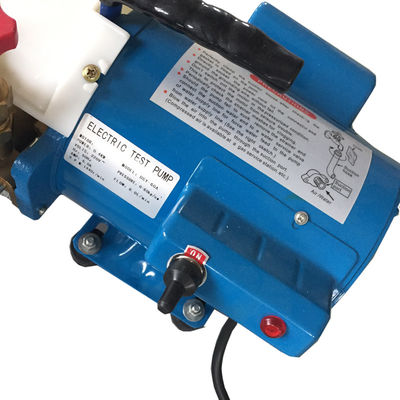

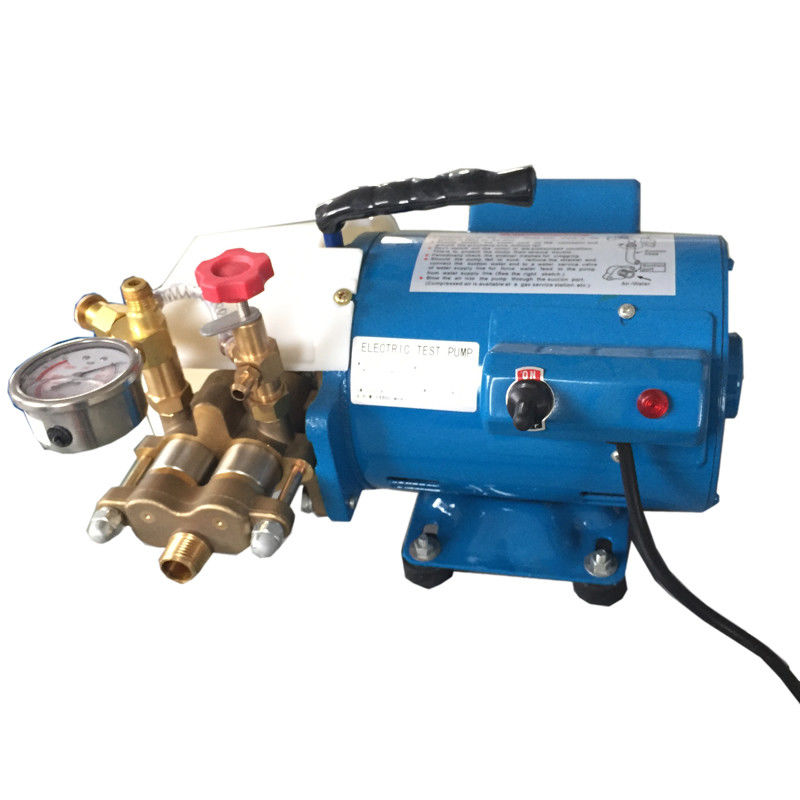

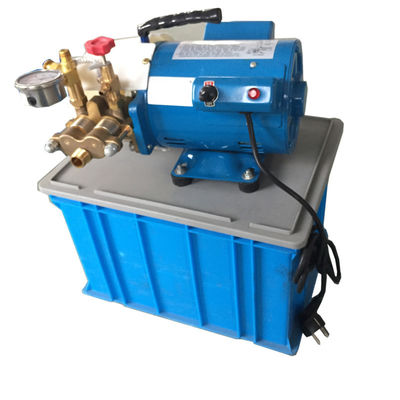

The SUNTECHMACH DSY60A electric hydraulic pressure test pump delivers 400W of power and a high 6.0 L/min flow rate for quick, exact compression testing and leak detection in heating, compressed air, refrigeration, oil installations, sprinkler systems and other small bore pipe applications. It pressurizes pipe systems up to 60 bar (860 psi) automatically — no manual pumping. Compact (18 kg) with blue body and customizable logo, it is the faster choice for busy plumbing and installation contractors.

Key Features

• 400W Electric Drive — No manual pumping; automatic, consistent pressure.
• 6.0 L/min High Flow — Faster pressurization than standard 250W models (480 L/H).
• 0-60 Bar (860 psi) Testing Range — 0-6.0 MPa for leak and compression tests.
• 110V/220V Selectable — Fits different market voltages.
• Compact & Portable — 18 kg with poly box packaging; job-site ready.
• OEM Friendly — Customizable logo and color for distributors.

Technical Specifications

What's Included

• 1x DSY60A electric test pump
• 1x Pressure hose
• 1x Pressure gauge
• 1x Seal set
• 1x Operation manual + 12-month warranty card

Applications

• Heating installations (leak testing)
• Sprinkler system testing
• Compressed air & refrigeration systems
• Oil installations
• Water pipe pressure testing (PPR / PVC / PE pipe & fittings)
• Other small bore pipe applications

Packaging & Quality Assurance

One piece per poly box + outer carton. ISO9001 quality system; every pump tested before shipment.

After-Sales Support

• 12-month warranty
• WhatsApp: +86-13777804353 ｜ Email: vivian@cnsuntech.com
• 24-hour response for inquiries and after-sales

Operation Guide

1. Check that the gasket and the joint are well matched; connect the water inlet pipe correctly.
2. Connect to a socket with leakage protection; the fire wire and ground wire must be connected correctly.
3. Loosen the pressure regulating knob first — never start the motor with load.
4. Fill the tank with water filtered by a 100 mesh/inch filter; the suction port must stay under the water surface.
5. After the test, loosen the pressure regulating knob, add a little oil (20#), and run the pump for half a minute.
6. Never run the pump without water (damages sealing and piston rings).

Common Faults & Solutions

FAQ

1. WHO ARE WE? — We are a professional pipe machine manufacturer in Hangzhou, China. Our team has worked in the pipe tool industry since 1989, and the company was registered in 2014. We are close to Shanghai, Ningbo and Yiwu ports, exporting mainly to North & South America, South Asia and the Middle East.
2. HOW CAN WE GUARANTEE THE QUALITY? — We always test at least one pipe on every machine before shipping. All our machines carry a 12-month warranty.
3. WHAT CAN YOU BUY FROM US? — Pipe threading machines, roll grooving machines, pipe cutting machines, pipe bending machines, plastic pipe welding machines, pressure test pumps and pipe tools.
4. WHY SHOULD YOU BUY FROM US? — We offer a full range of pipe tools; you can mix different models in one shipment. Multilingual support: English, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.
5. HOW LONG IS THE LEADTIME? — Usually 10-35 days after payment, depending on motor voltage customization.
6. HOW CAN YOU PLACE ORDER? — We accept T/T payment to our company account; online shop payment by credit card is also available.
7. HOW TO SHIP? — By sea to port for bulk orders; door-to-door delivery for small shipments.
8. WHAT IS THE MOQ? — No strict MOQ; however, we recommend an order amount of at least USD 2000 for cost-effective overseas shipping.
9. IS OEM ACCEPTABLE? — Yes. For bulk orders we can make nameplates and customized packaging in your brand.
